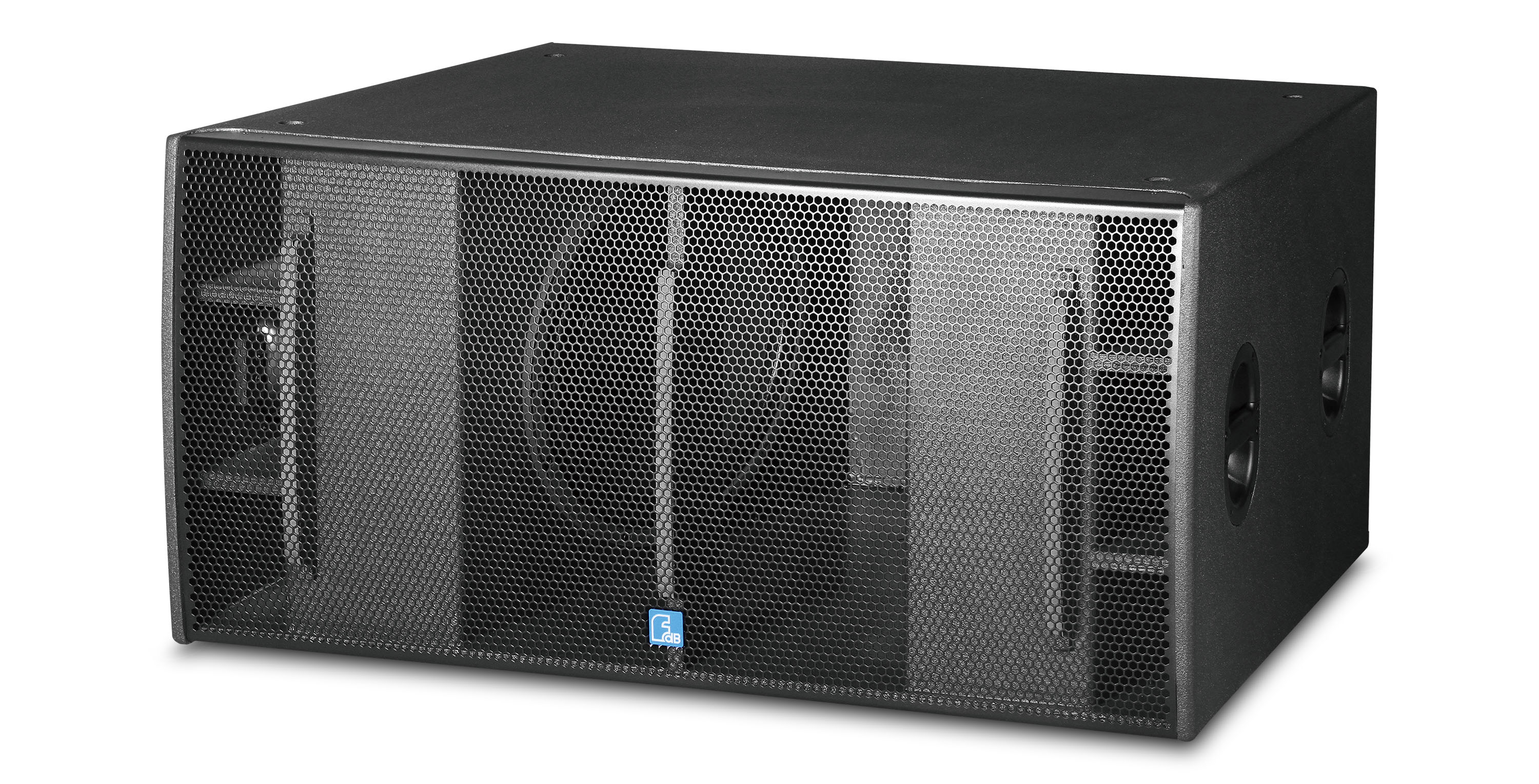

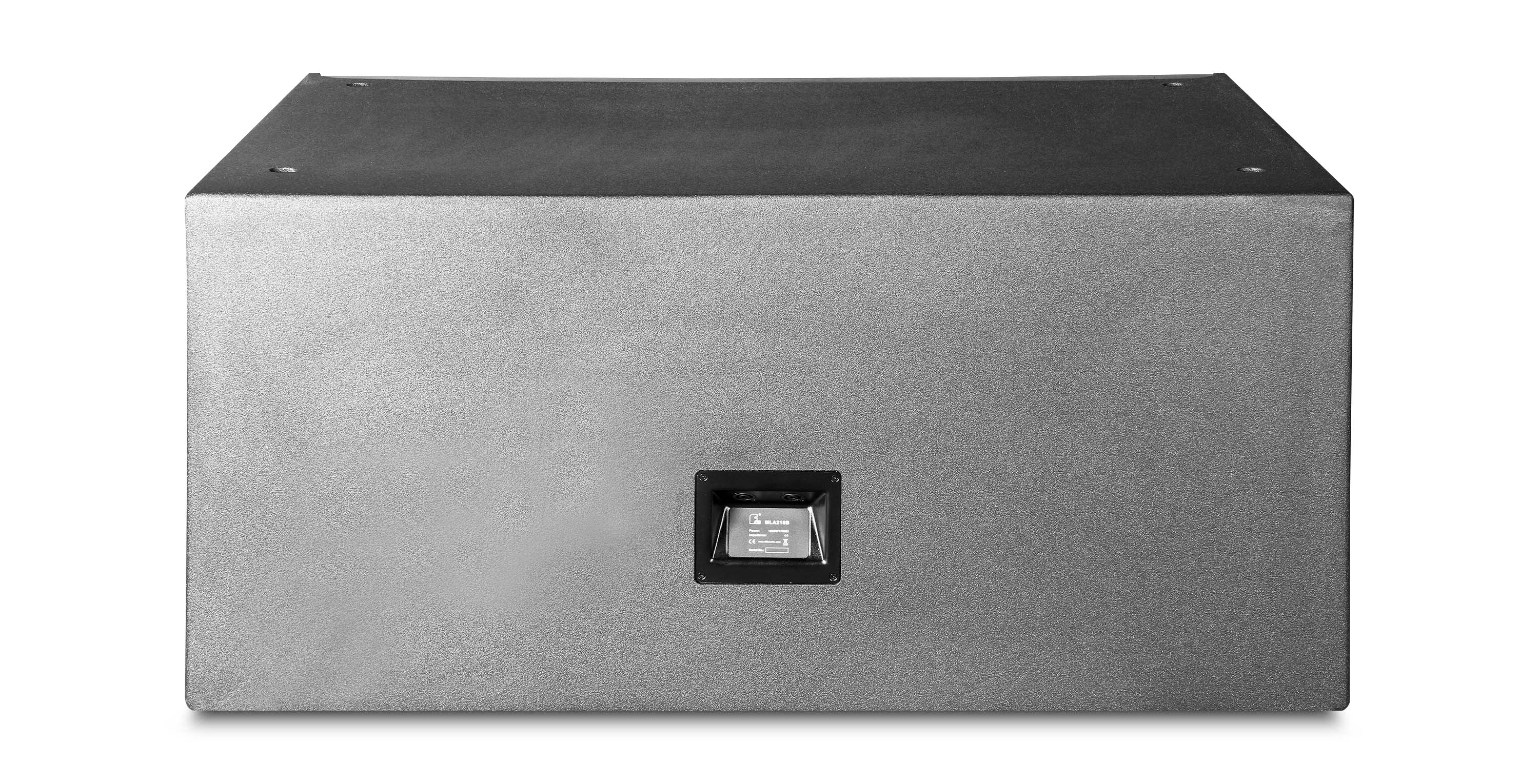

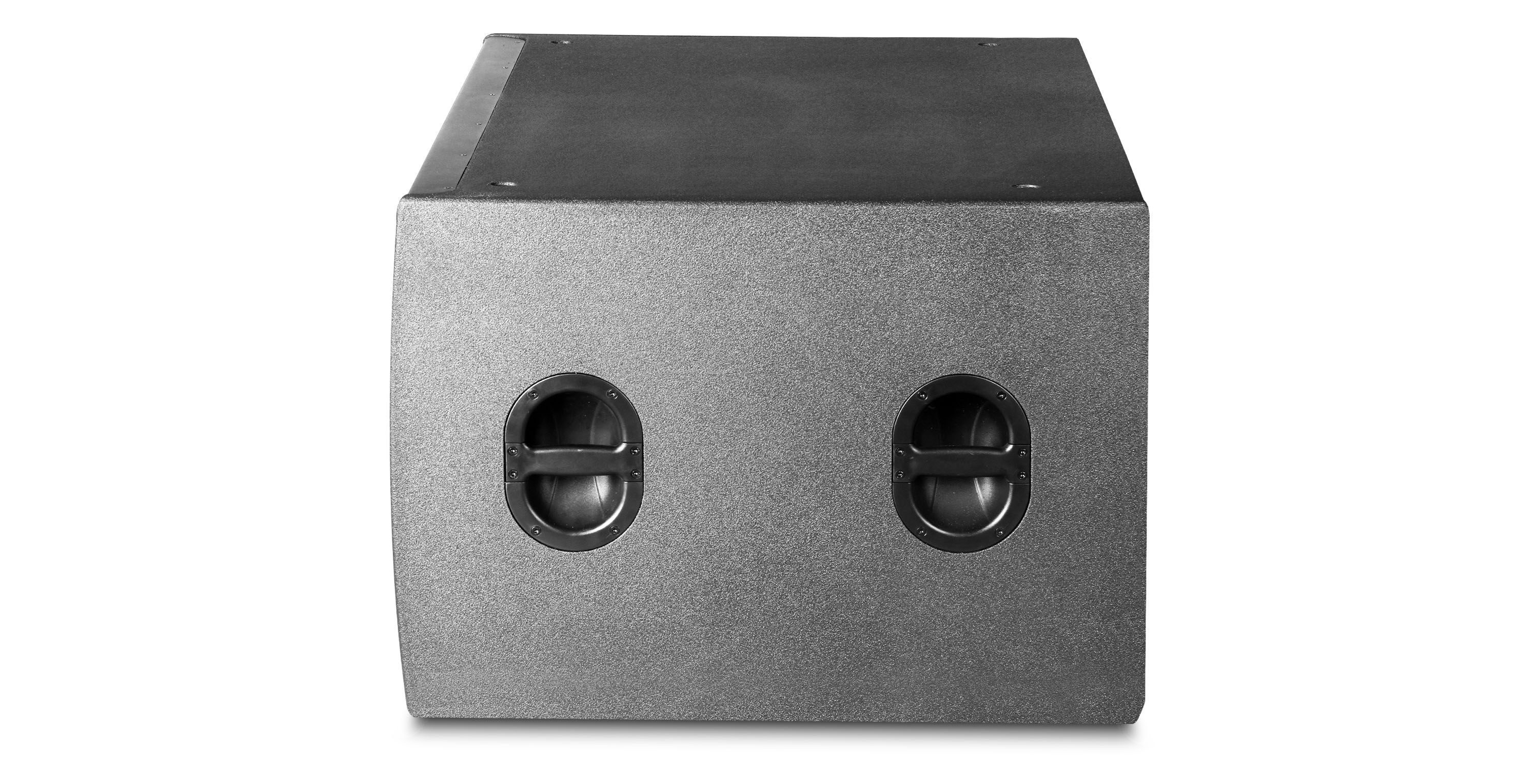

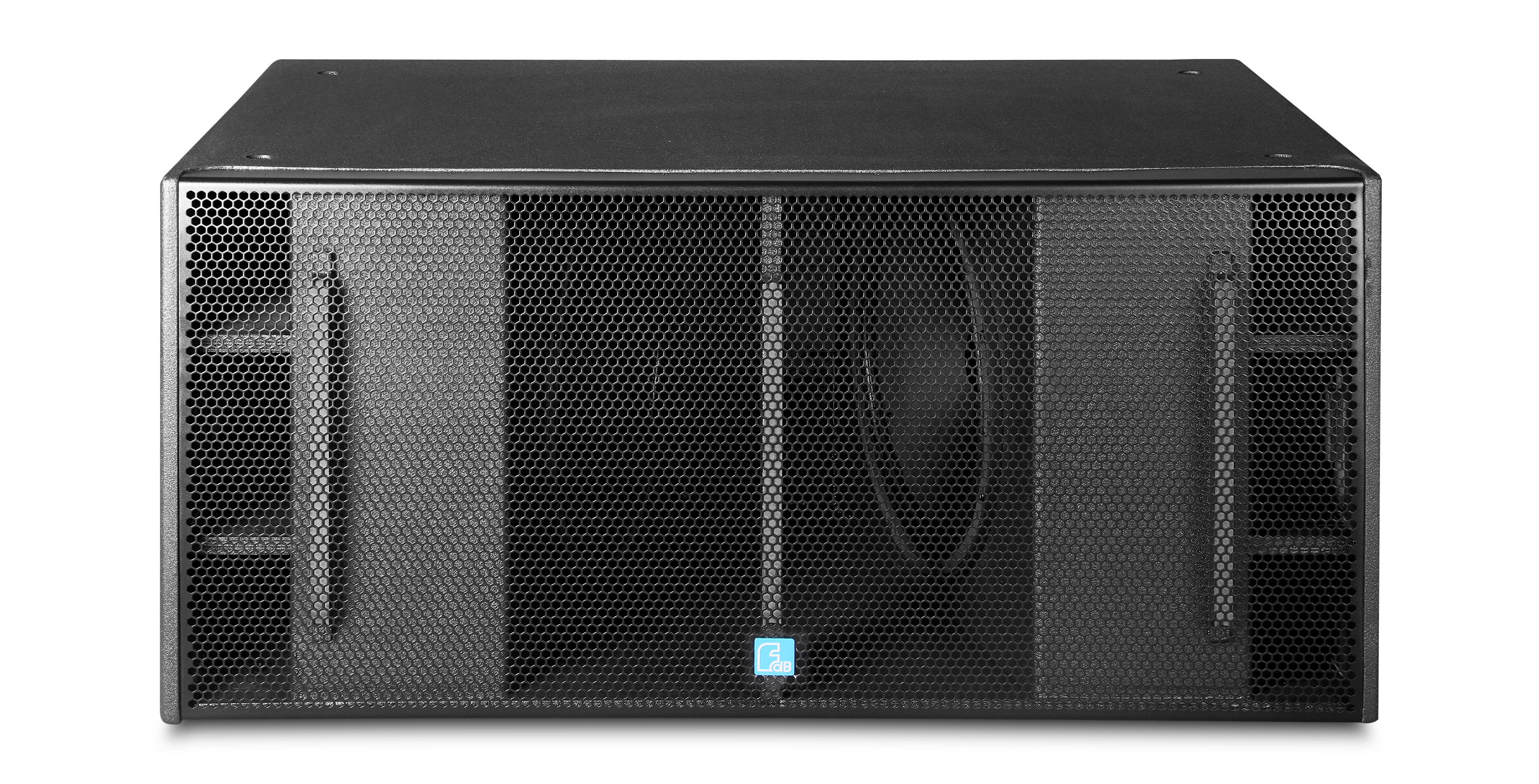

MLA218B/MLA218BA
2x18"Sub-woofer/2x18" Active Sub-woofer
DESCRIPTION

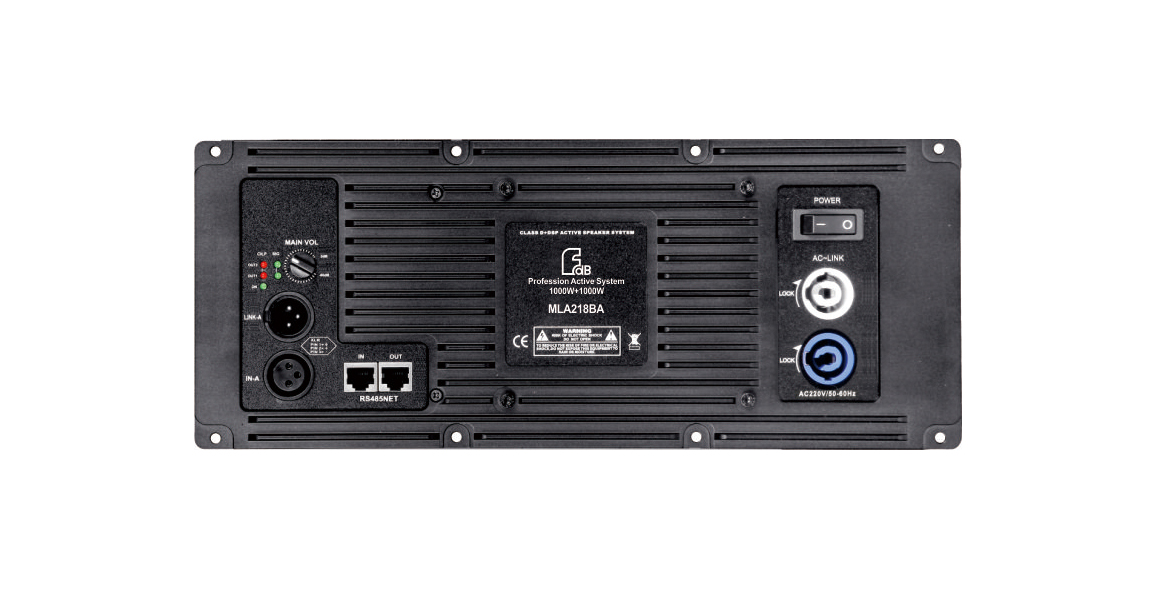

The MLA218B is a dual 18" low frequency enclosure designed for sub-bass reinforcement to MLA Series,made of high quality plywood with polyurea waterproof paint. The MLA218BA is equipped with BA2.1010 digital amplifier module based on MLA218B to be an active subwoofer.
FEATURES
●High quality plywood with polyurea waterproof paint
●Compact vented sub-bass
●Compact vented sub-bass
●High temperature 4"(100mm) voice coil
SPECIFICATIONS
| MODEL | MLA218B | MLA218BA |
| FREQUENCY RESPONSE(-3dB) | 35Hz-150Hz | 35Hz-150Hz |
| DRIVERS | 2x18"(460mm)/4"voice coil LF | 2x18"(460mm)/4"voice coil LF |
| RATED POWER | 1200W RMS,4800W peak | 1200W/4Ω+1200W/4Ω |
| SENSITIVITY | 103dB 1watt/1meter | -- |
| MAXIMUM SPL | 133dB continuous,139dB peak | 133dB continuous,139dB peak |
| IMPEDANCE | 4 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 1280mmx880mmx670mm | 1280mmx880mmx670mm |
| NET WEIGHT | 80 kg/pc | 82 kg/pc |
| GROSS WEIGHT | 92 kg/pc | 94 kg/pc |
