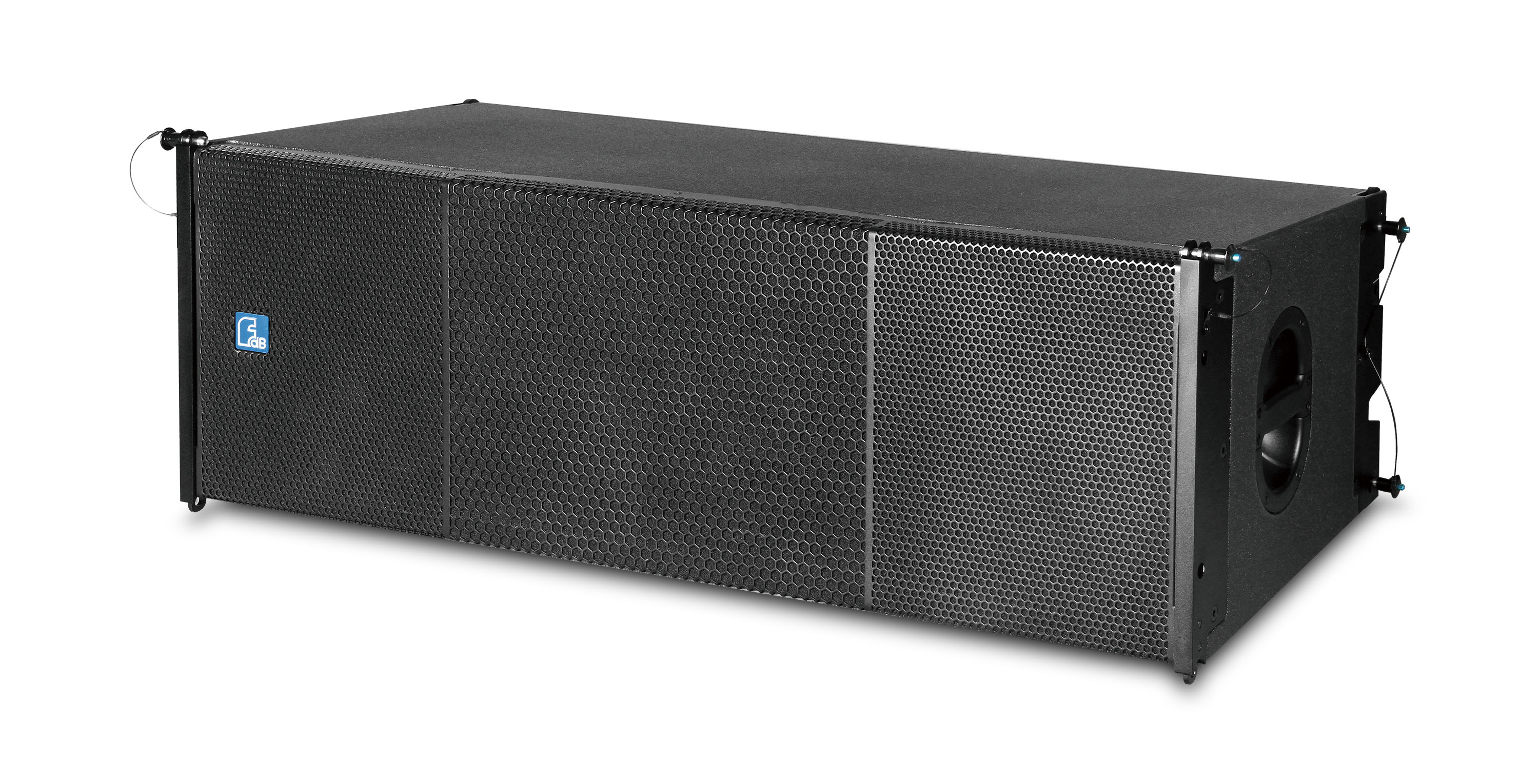

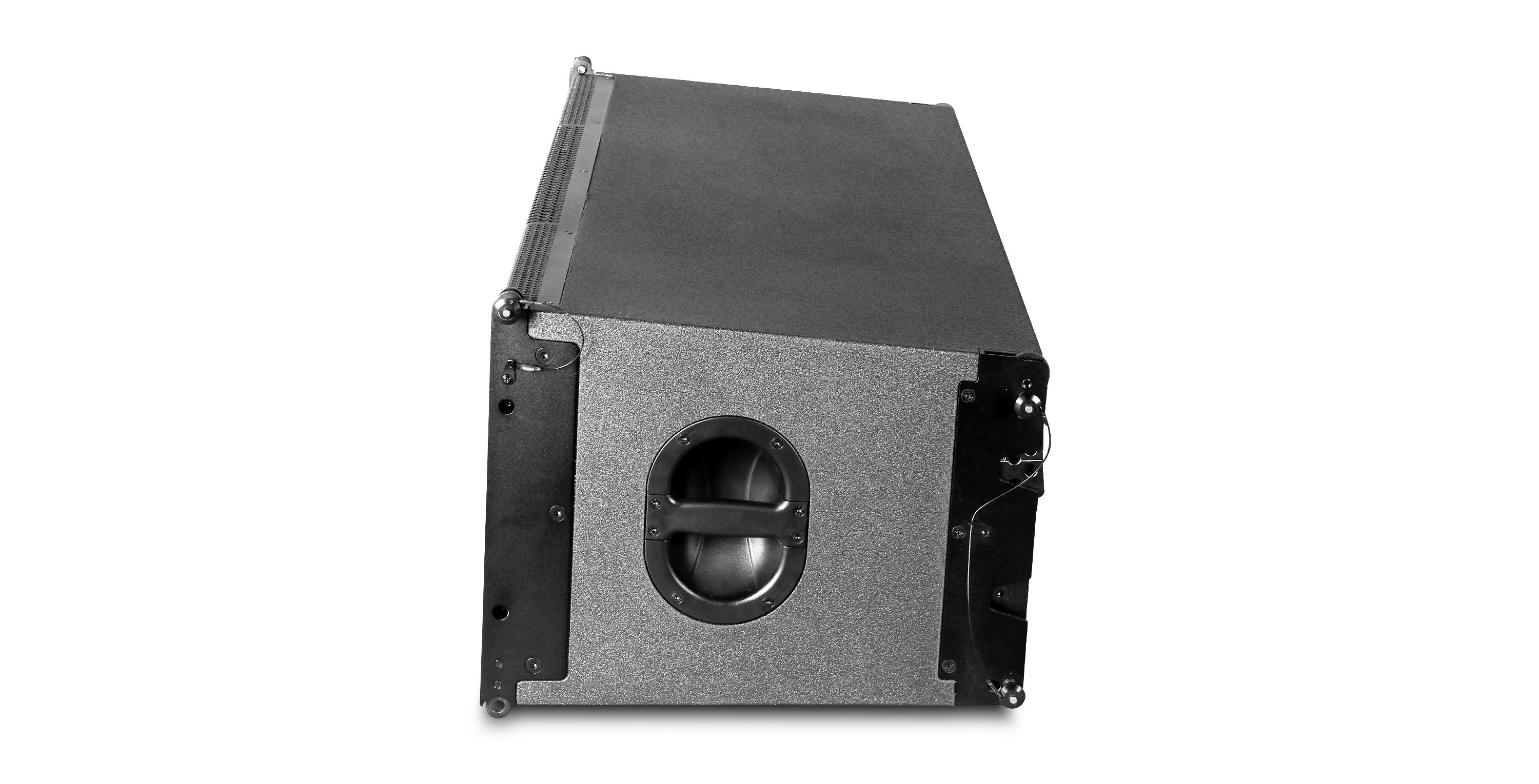

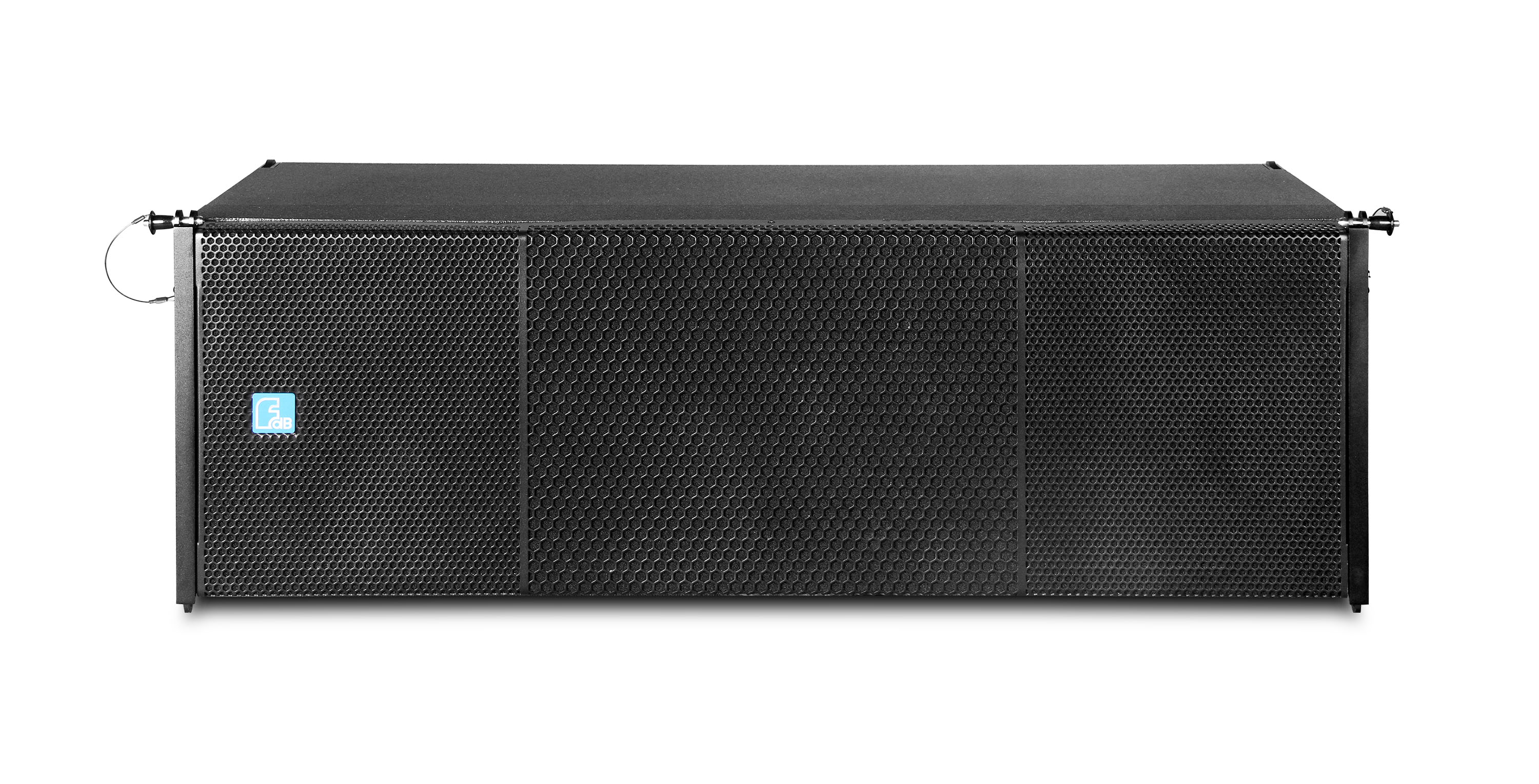

MLA8312/MLA8312DA
2x12" 3-way line array system /2x12" 3-way Active line array system
DESCRIPTION

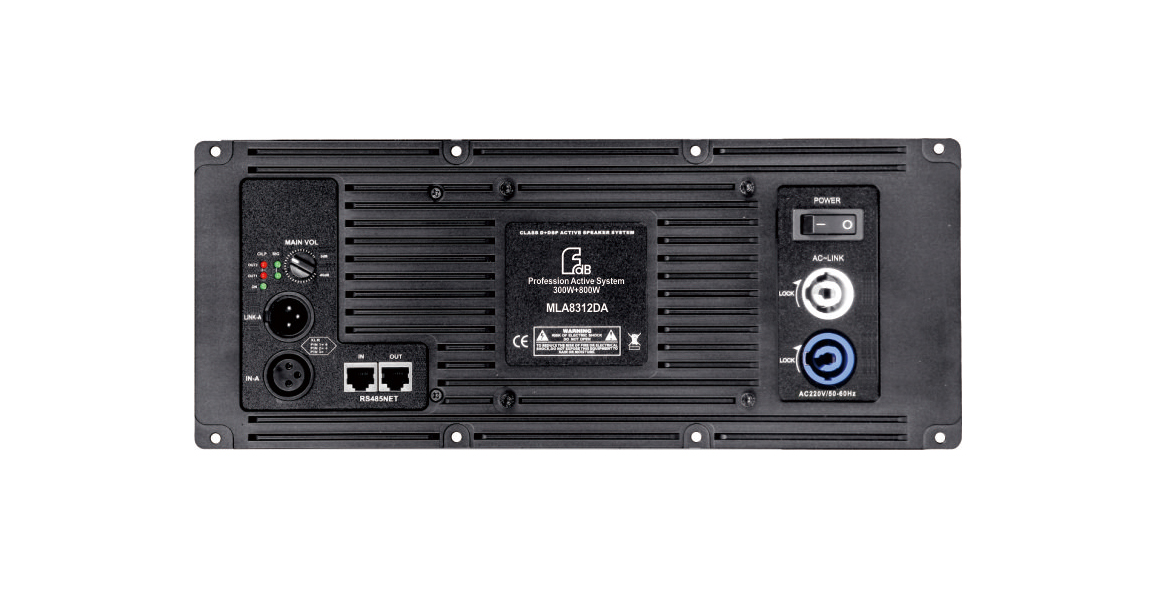

The MLA8312 is a 3-way line array loudspeaker for long throw distance sound reinforcement, fitted with two 12" neodymium LF drivers, four 6" neodymium MID drivers and two 1.4" neodymium HF driver coupled to 1"x 6" line array horn, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy. MLA8312DA is euqipped with FA2.68 digital amplifier module based on MLA8312 to be an active line array loudspeaker.
FEATURES
●High quality plywood with polyurea waterproof paint
●High power - maximum SPL 131dB continuous, 137dB peak (single unit)
●Wide bandwidth 50Hz-18KHz
●Passive or bi-amp operation
●Fast, integral rigging system with var iable splay angles
●High power - maximum SPL 131dB continuous, 137dB peak (single unit)
●Wide bandwidth 50Hz-18KHz
●Passive or bi-amp operation
●Fast, integral rigging system with var iable splay angles
●Common grid may be used for flying or ground stacking
SPECIFICATIONS
| MODEL | MLA8312 | MLA8312DA |
| FREQUENCY RESPONSE(-3dB) | LF: 50Hz-3kHz | 50Hz-18kHz |
| MF+HF: 400Hz-18kHz | -- | |
| DRIVERS | 2×12"(300mm)/3"voice coil LF | 2×12"(300mm)/3"voice coil LF |
| 4×6"(160mm)/2"voice coil MF | 4×6"(160mm)/2"voice coil MF | |
| 2×1.4"(36mm)/3"voice coil HF | 2×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | LF: 800W RMS,3200W peak | 600W/8Ω+1200W/4Ω |
| MF+HF: 400W RMS,1600W peak | – | |
| SENSITIVITY | LF: 100dB 1watt/1meter | – |
| MF+HF: 103dB 1watt/1meter | – | |
| MAXIMUM SPL | LF: 129dB continuous,135dB peak | 129dB continuous,135dB peak |
| MF+HF: 129dB continuous,135dB peak | – | |
| IMPEDANCE | LF: 8 ohms nominal | – |
| MF+HF: 8 ohms nominal | – | |
| DISPERSION(-6dB) | Horizontal coverage:100°, | Horizontal coverage:100°, |
| Vertical coverage:varies,depending on | Vertical coverage:varies,depending on | |
| arry length and configuration | arry length and configuration | |
| CROSSOVER FREQUENCIES | 400Hz,1.3 kHz passive | – |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 570mm×480mm×1240mm | 570mm×480mm×1240mm |
| NET WEIGHT | 50 kg/pc | 52 kg/pc |
| GROSS WEIGHT | 56 kg/pc | 58 kg/pc |
