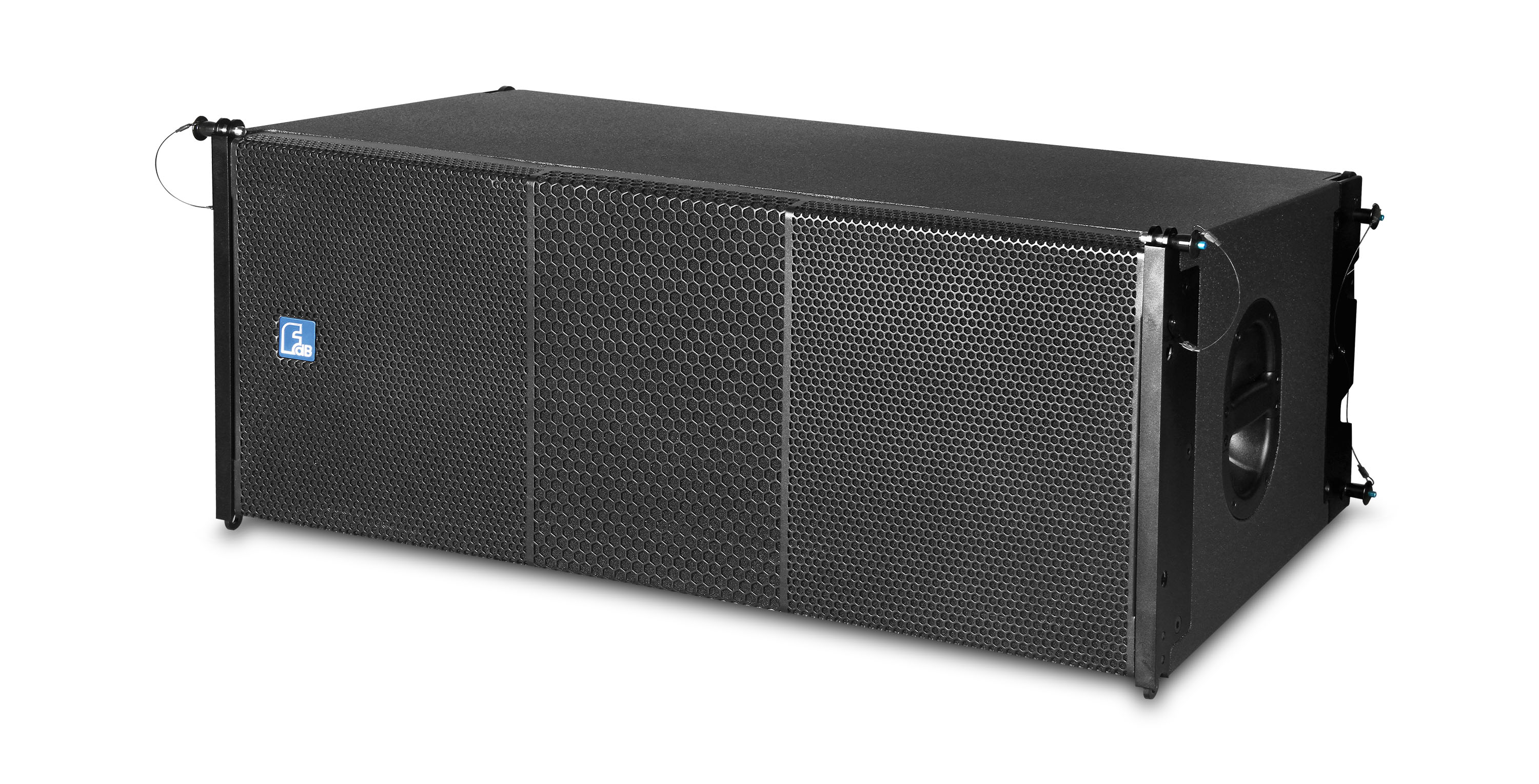

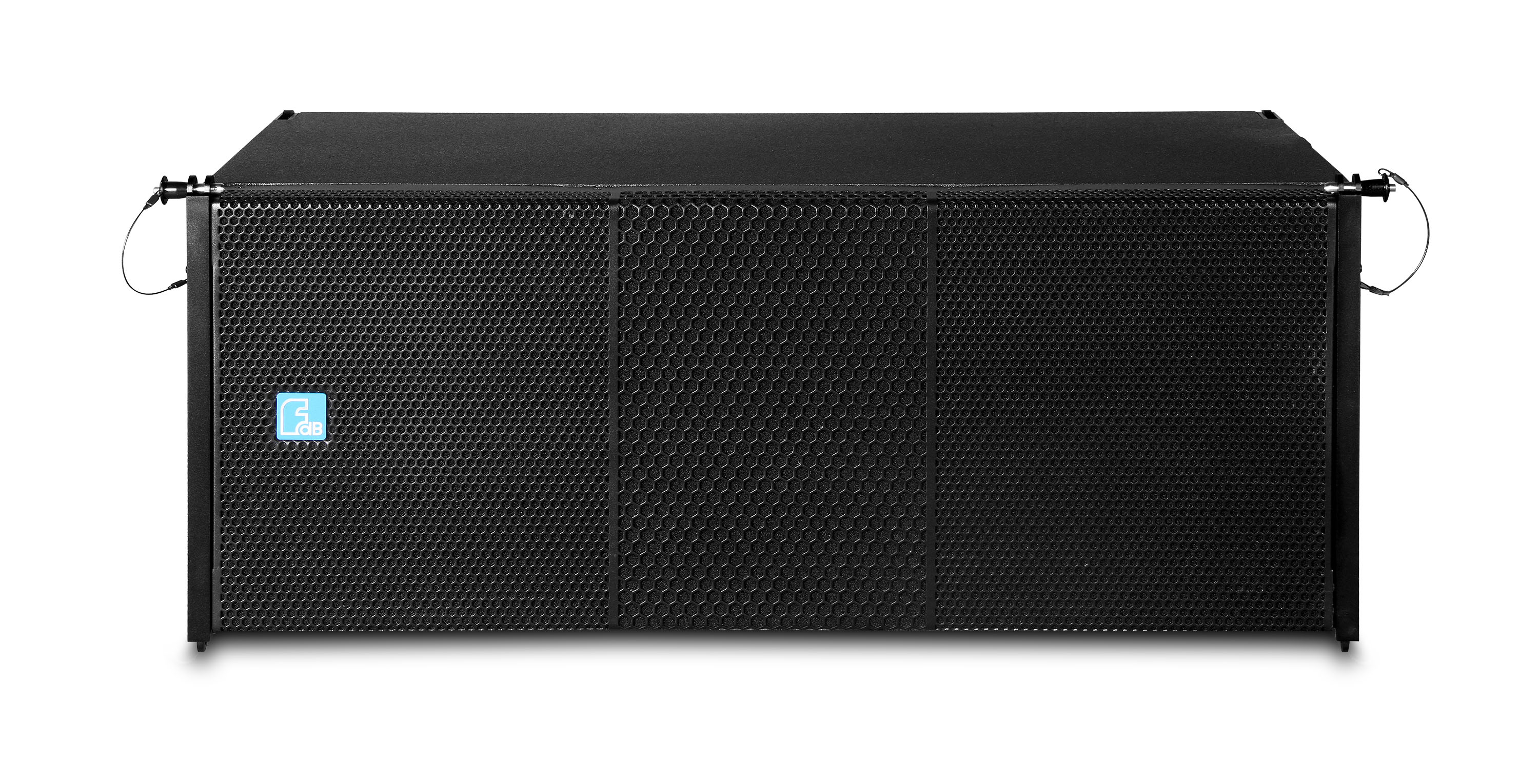

MLA212/MLA212DA
2x12" 2-way line array system /2x12" 2-way active line array system
DESCRIPTION

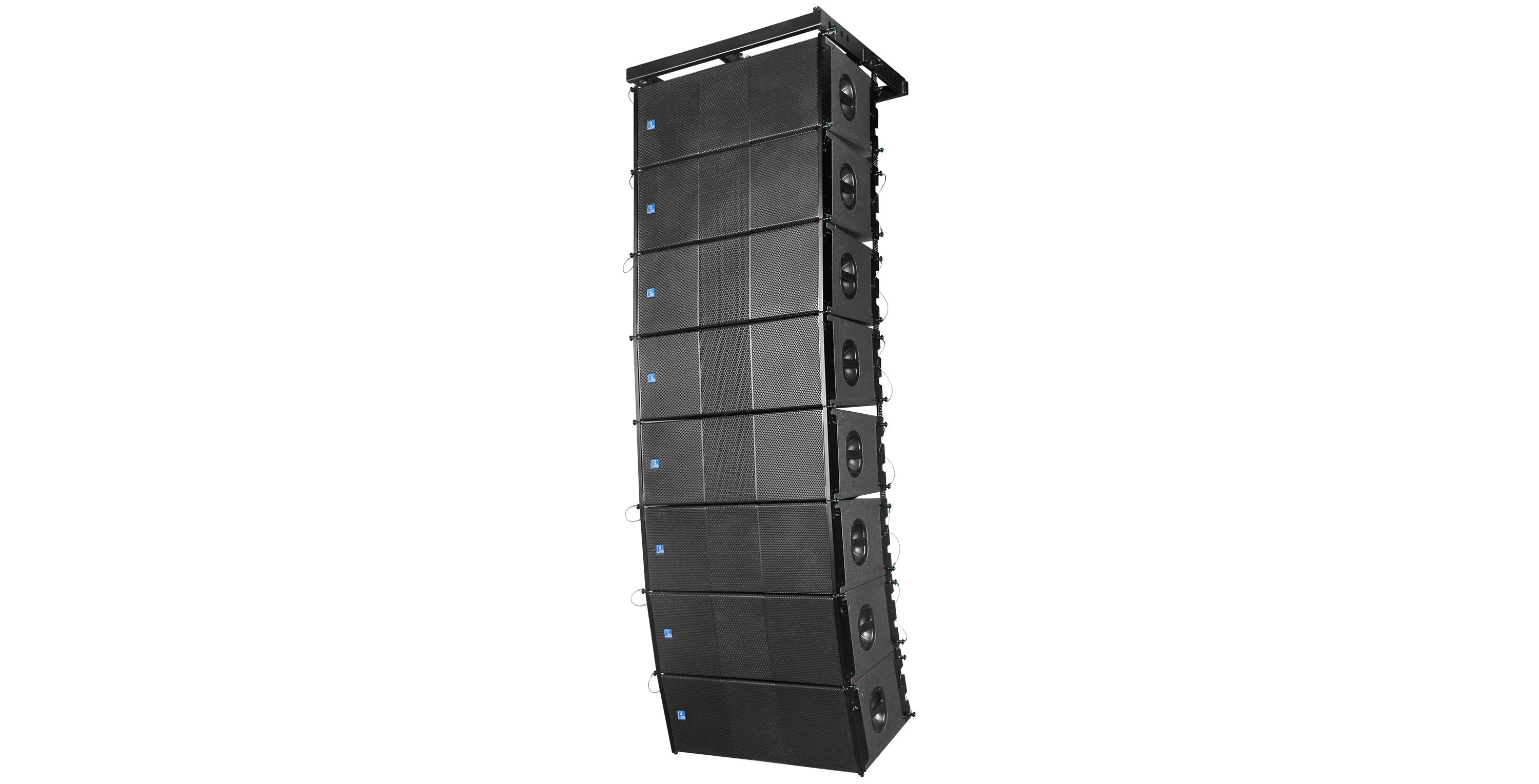

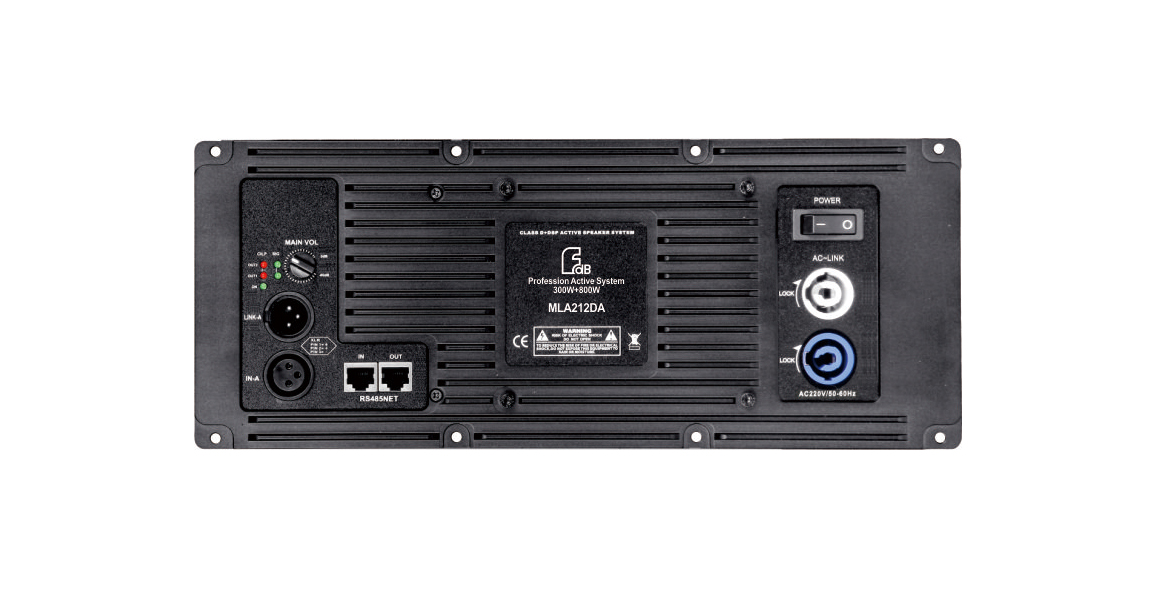

The MLA212 is a 2.5-way line array loudspeaker for long throw distance scale sound reinforcement, fitted with two 12" neodymium LF driver and two 1.4" neodymium HF driver, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy. The MLA212DA is equipped with FA2.38 digital amplifier module based on MLA212 to be an active line array loudspeaker.
FEATURES
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight,but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging and stacking
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight,but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging and stacking
●Good used for big moving performance,big scale theater,stadium and odeums.
SPECIFICATIONS
| MODEL | MLA212 | MLA212DA |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18KHz | 50Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
45Hz-20KHz |
45Hz-20KHz |
| DRIVERS | 2x12"(300mm)/3"voice coil LF | 2x12"(300mm)/3"voice coil LF |
| 2x1.4"(36mm)/3"voice coil HF | 2x1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 800W RMS,3200W peak | 300W/8Ω+1200W/4Ω |
| SENSITIVITY | 101dB 1watt/1meter | -- |
| MAXIMUM SPL | 130dB continuous,136dB peak | 130dB continuous,136dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | Horizontal coverage:100°, | Horizontal coverage:100°, |
| Vertical coverage:varies,depending on | Vertical coverage:varies,depending on | |
| arry length and configuration | arry length and configuration | |
| CROSSOVER FREQUENCIES | 400Hz,1.3kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 570mmx480mmx1055mm | 570mmx480mmx1055mm |
| NET WEIGHT | 41 kg/pc | 43 kg/pc |
| GROSS WEIGHT | 47 kg/pc | 49 kg/pc |
