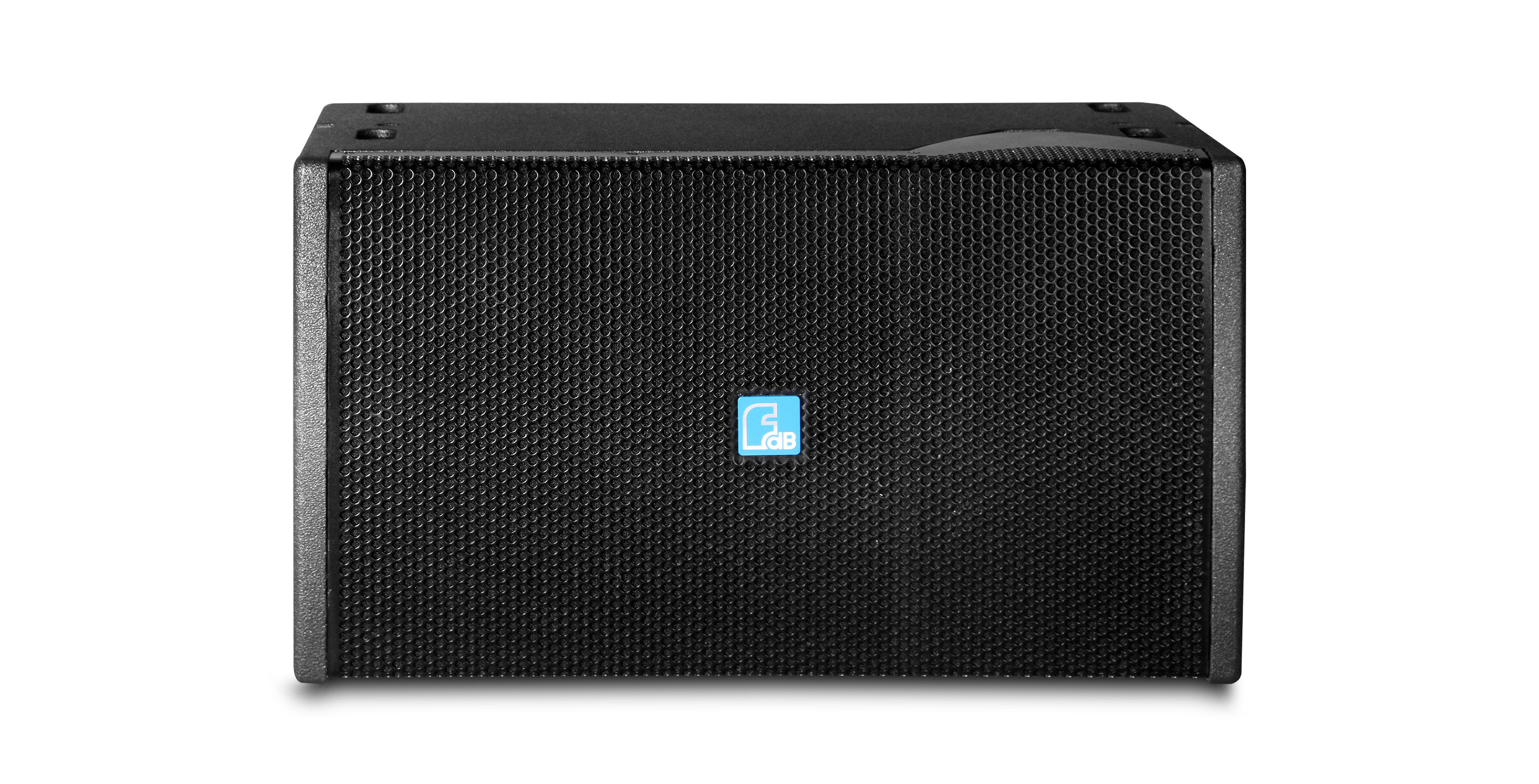

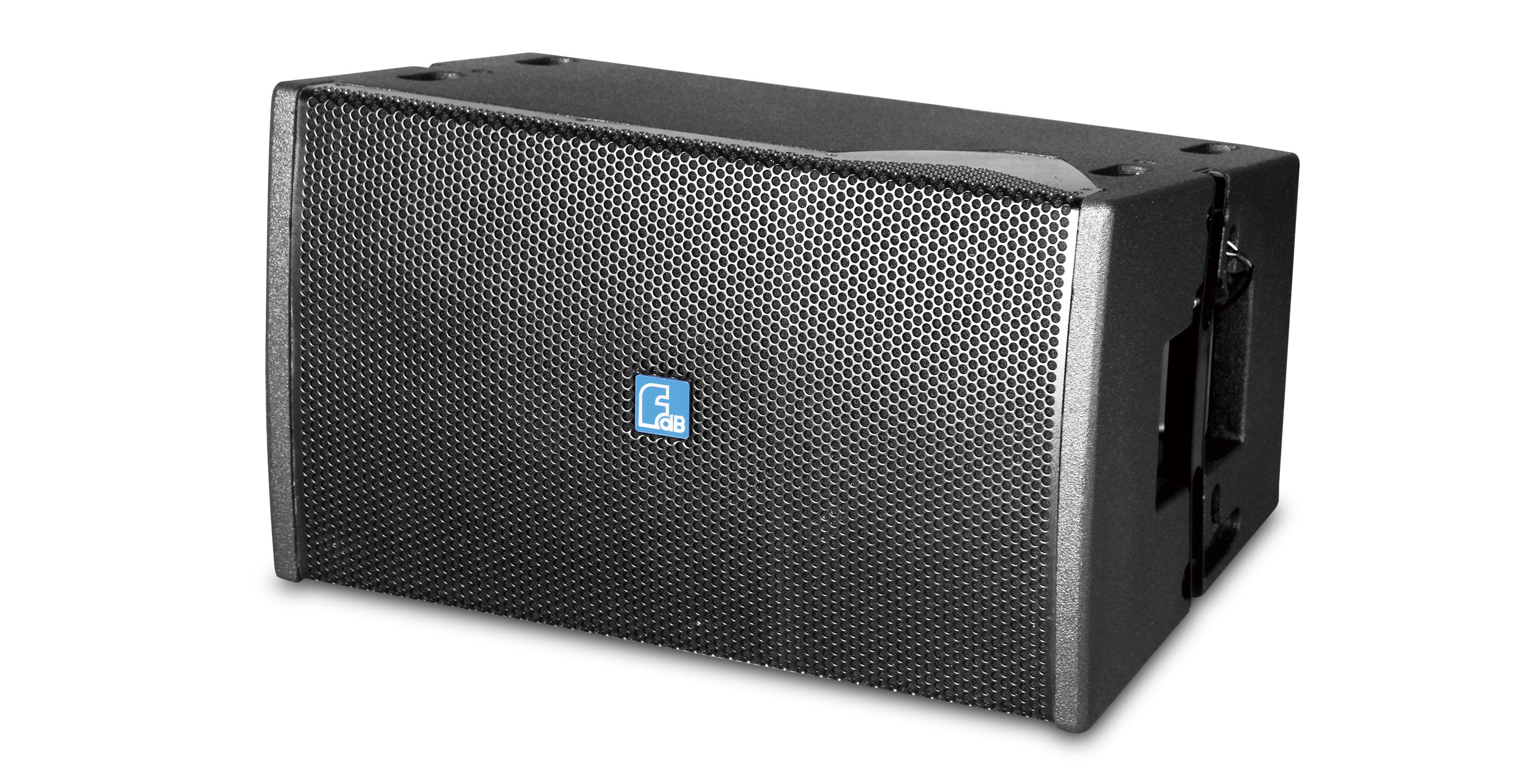

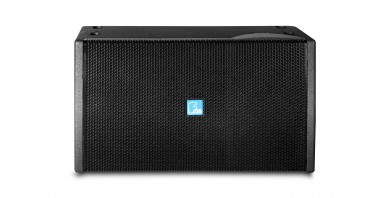

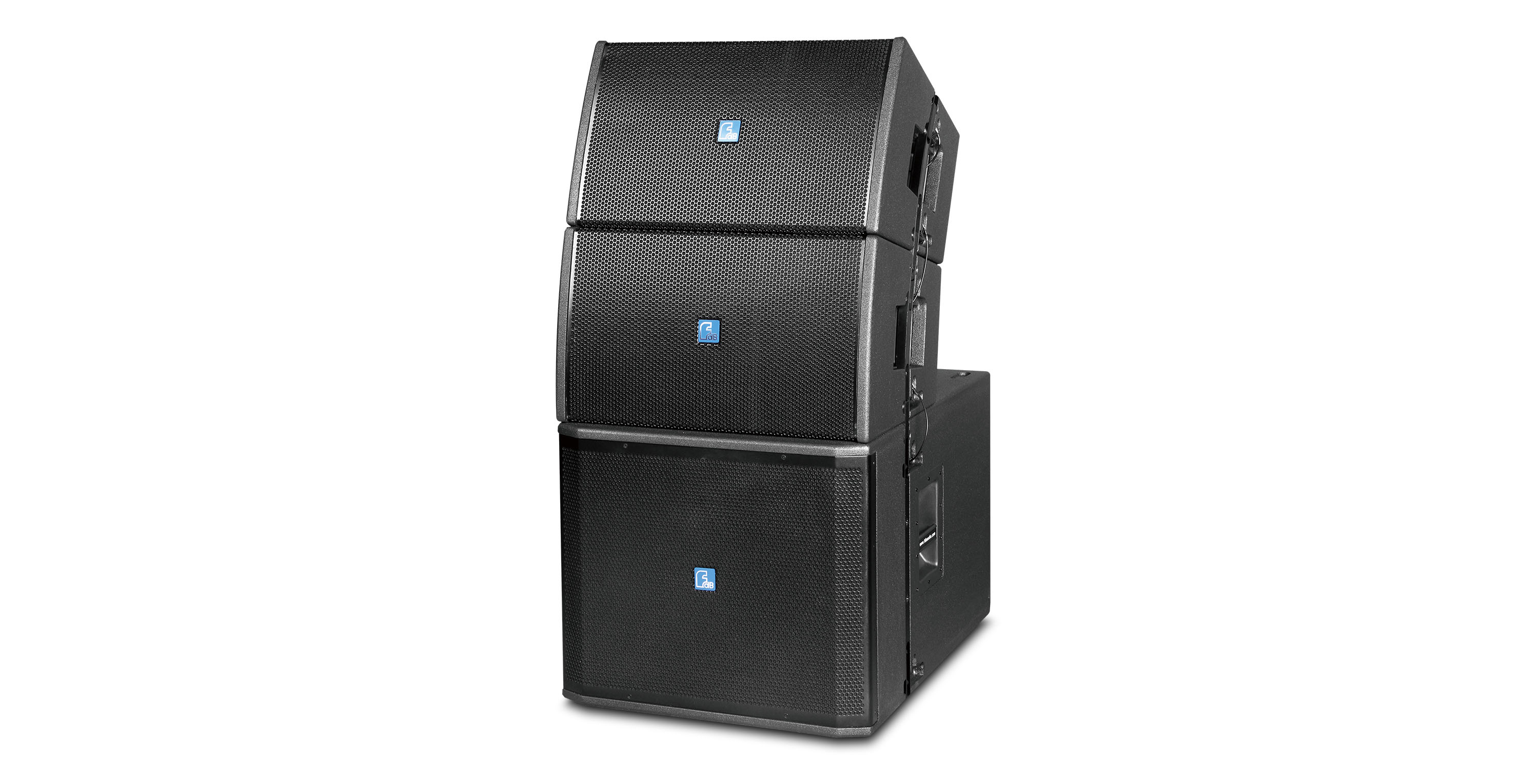

MLA412
1x12" 2-way line array system
DESCRIPTION

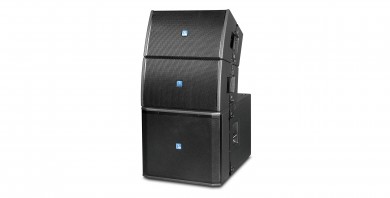

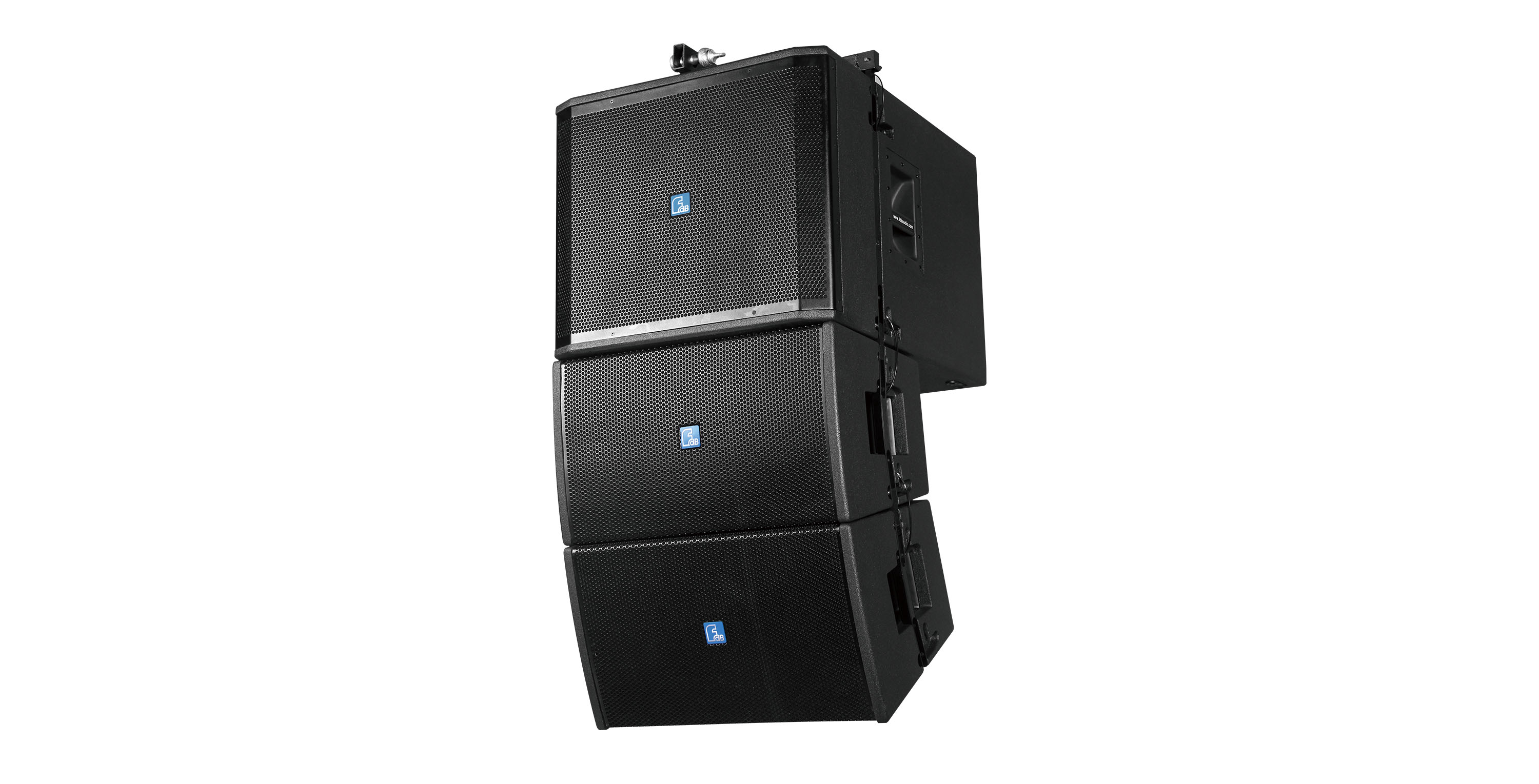

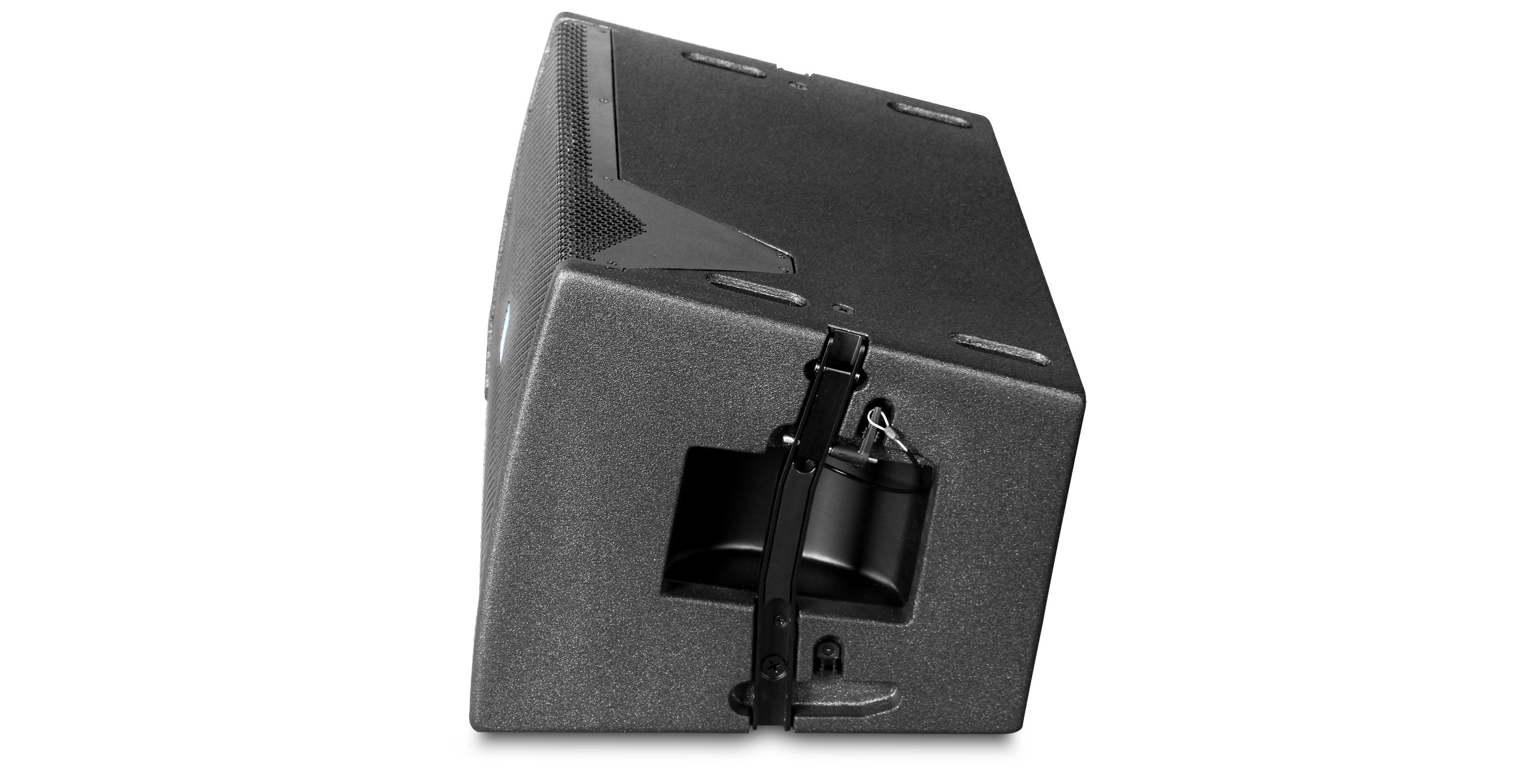

The MLA412 is a line array loudspeaker for small and medium scale sound reinforcement, using the MLA412 flying frame which can be flown in vertical columns up to 3 cabinets giving a 100° constant dispersion pattern in the horizontal plane. MLA412 is a 2-way design housing fitted with one 12" LF driver and three 1" exit neodymium HF drivers coupled to plastic wave guide line array horn, made of high quality plywood with polyurea wateproof paint. All rigging parts are made of aluminium alloy.
FEATURES
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Small cabinet with light weight,but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging

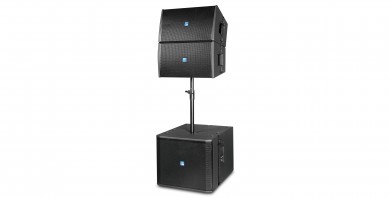

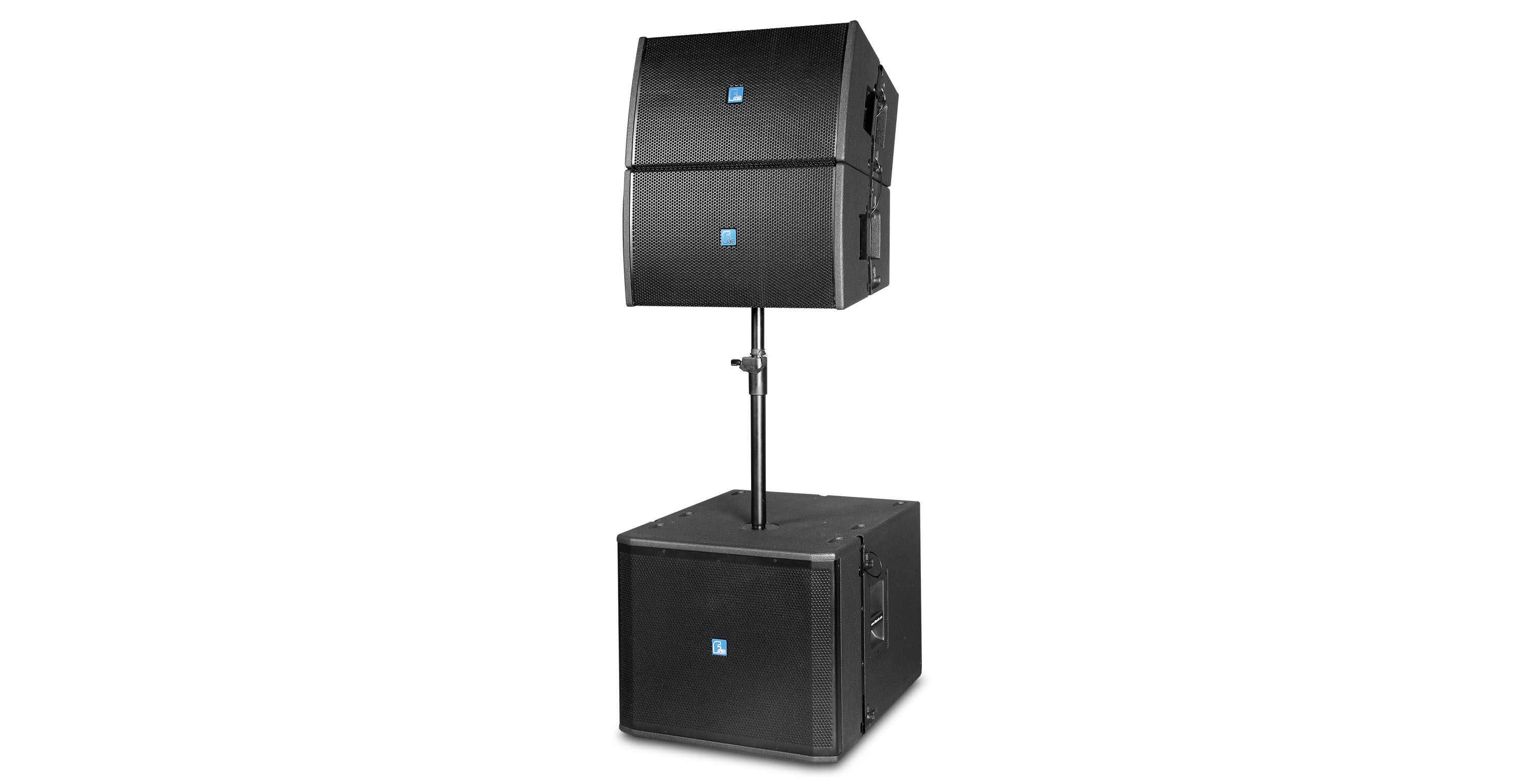

●Top hat fitting for pole mounting
●High quality neodymium components
●Small cabinet with light weight,but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging
●Top hat fitting for pole mounting
●Good used for moving performance,small scale theater,stadium and odeums.
SPECIFICATIONS
| MODEL | MLA412 |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
45Hz-20kHz |
| DRIVERS | 1x12"(300mm)/3"voice coil LF |
| 3x1"(25mm)/1.4"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 98dB 1watt/1 metre |
| MAXIMUM SPL | 122 dB continuous,128 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 100°x15° |
| CROSSOVER FREQUENCIES | 2kHz passive |
| INPUT CONNECTORS | 2xSpeakon NL4 |
| PACKAGE SIZE | 750mmx425mmx780mm(Flight case/Pair) |
| 466mmx430mmx695mm | |
| NET WEIGHT | 22 kg/pc |
| GROSS WEIGHT | 82 kg/(Flight case/Pair) |
| 26 kg/pc |
