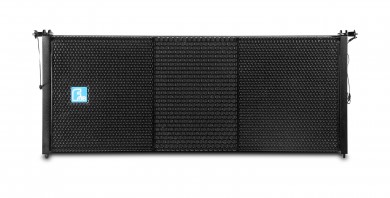

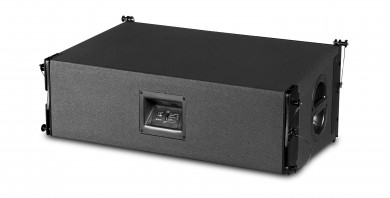

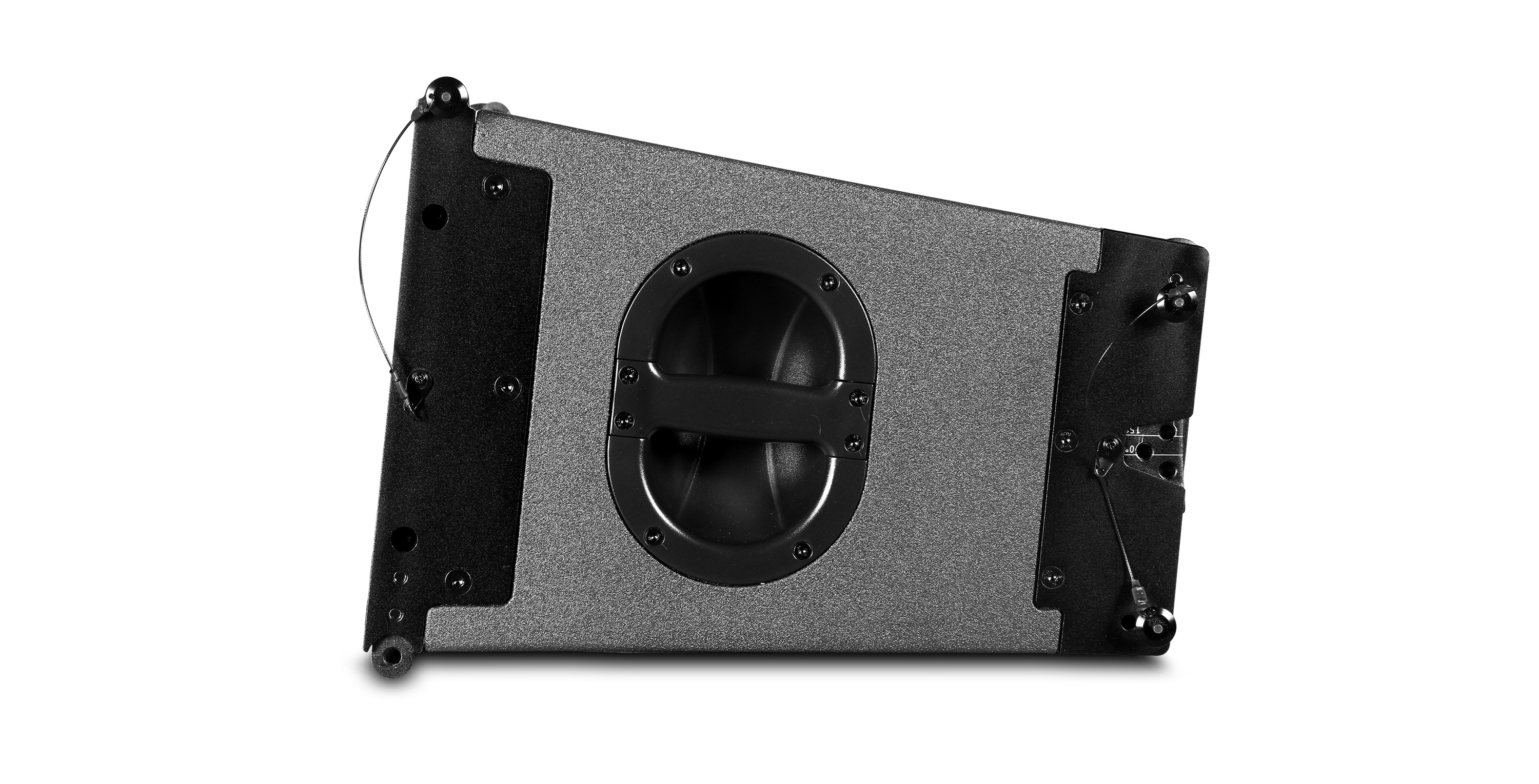

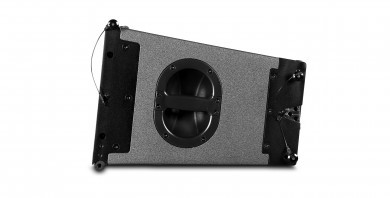

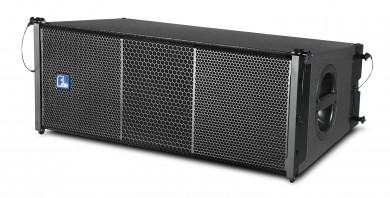

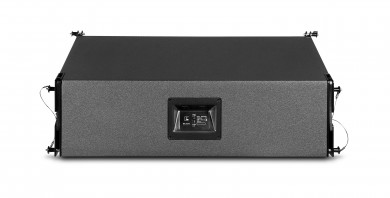

MLA210/MLA210DA
2x10" 2-way line array system /2x10" 2-way active array system
DESCRIPTION

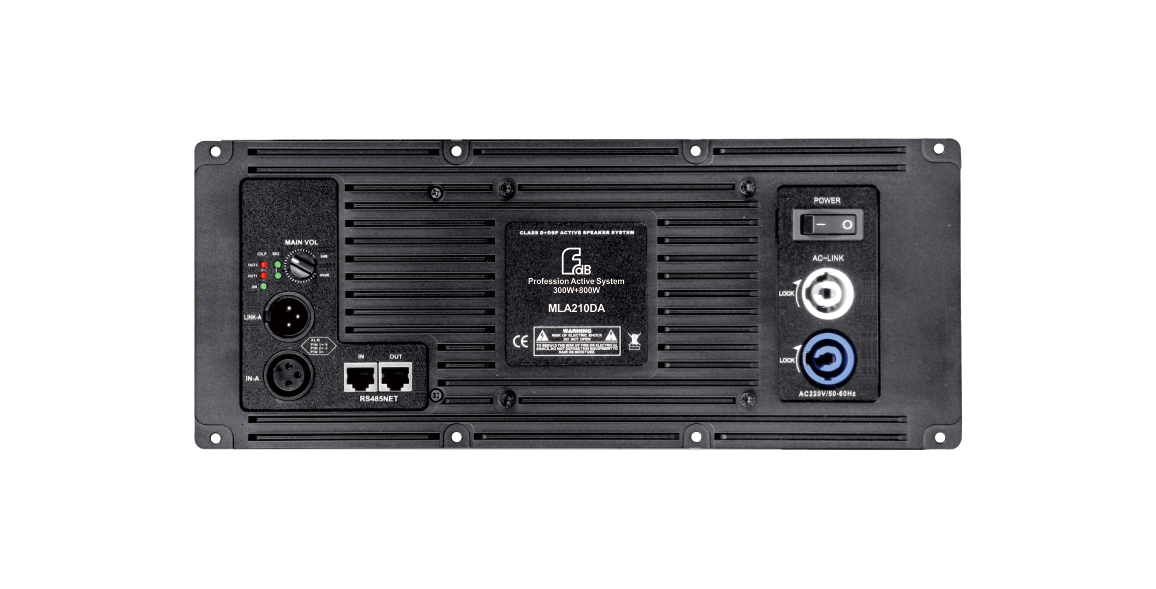

The MLA210 is a 2.5-way medium scale line array loudspeaker for long throw distance scale sound reinforcement, fitted with two 10" neodymium LF driver and one 1.4" neodymium HF driver coupled to a patent line array horn, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy. The MLA210DA is equipped with FA2.38 digital amplifier module based on MLA210 to be an active line array loudspeaker.
FEATURES
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation

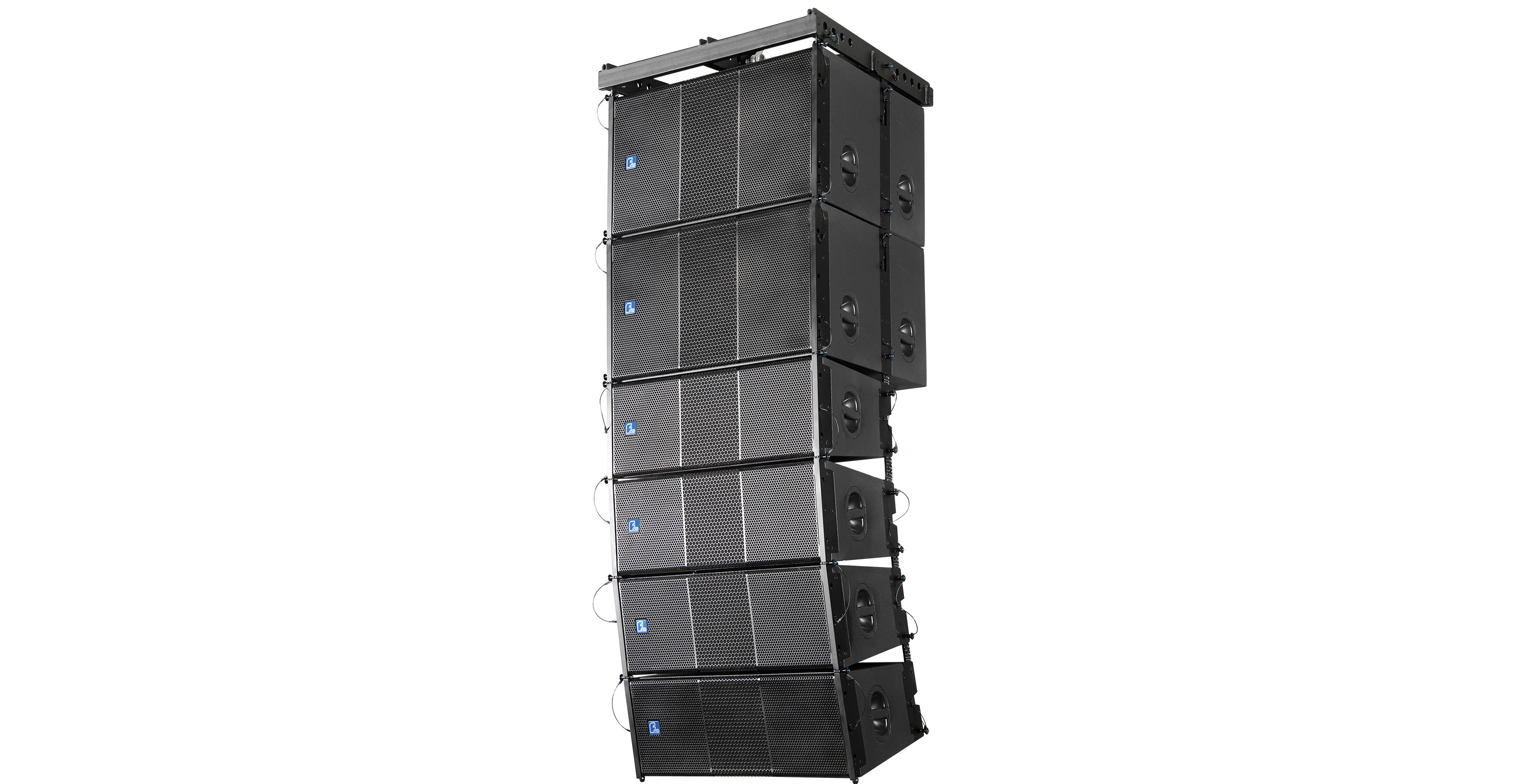

●Convenient for hanging and stacking
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging and stacking
●Good used for stadiums,big scale performance,conference centers and odeums.
SPECIFICATIONS
| MODEL | MLA210 | MLA210DA |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18KHz | 55Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
50Hz-20KHz |
50Hz-20KHz |
| DRIVERS | 2x10"(250mm)/3"voice coil LF | 2x10"(250mm)/3"voice coil LF |
| 1x1.4"(36mm)/3"voice coil HF | 1x1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 500W(RMS),2000W peak | 300W/8Ω+800W/8Ω |
| SENSITIVITY | 101dB 1watt/1meter | -- |
| MAXIMUM SPL | 128dB continuous,134dB peak | 128dB continuous,134dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | Horizontal coverage:100°, | Horizontal coverage:100°, |
| Vertical coverage:varies,depending on | Vertical coverage:varies,depending on | |
| arry length and configuration | arry length and configuration | |
| CROSSOVER FREQUENCIES | 700Hz,1.5kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 525mmx410mmx865mm | 525mmx410mmx865mm |
| NET WEIGHT | 26 kg/pc | 28 kg/pc |
| GROSS WEIGHT | 31 kg/pc | 33 kg/pc |
CONFIGURATION
