MLA118W/MLA118WASII
1x18" Sub-woofer /1x18" Active Sub-woofer
DESCRIPTION

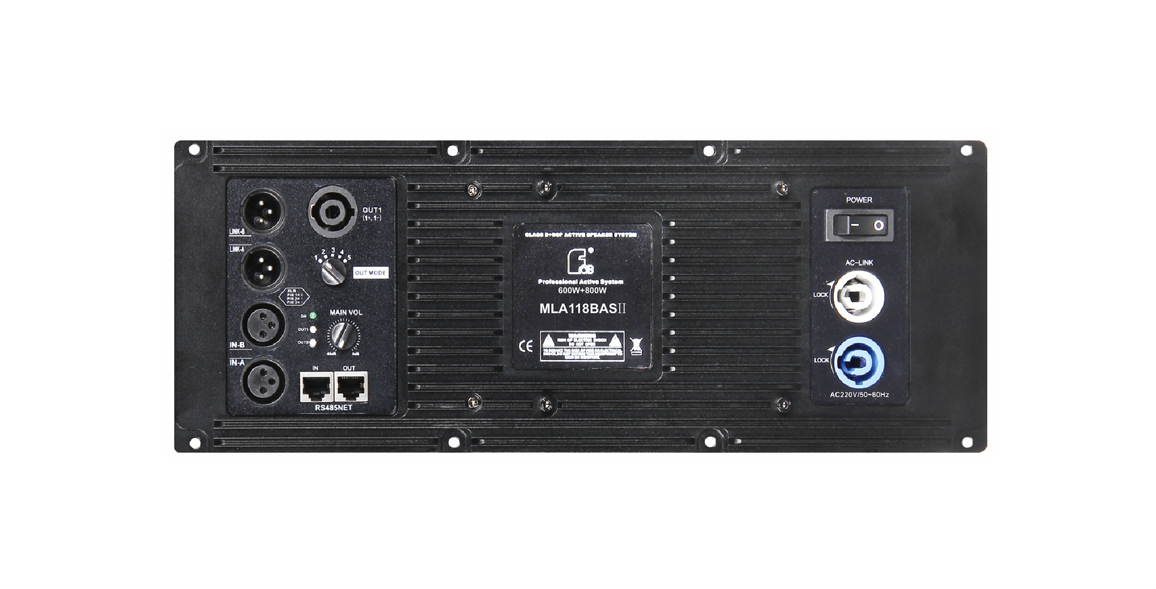

The MLA118W is a single 18" low frequency enclosure designed for sub-bass reinforcement to MLA112, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminum alloy. The MLA118WASII is equipped with SA2.68II digital amplifier module based on MLA118W to be an active system to push 2pcs MLA112.
FEATURES
FEATURES
● High quality plywood with polyurea waterproof paint
● Direct radiating design
● High quality plywood with polyurea waterproof paint
● Direct radiating design
● High temperature 4" (100mm) voice coil
SPECIFICATIONS
| MODEL | MLA118W | MLA118WASII |
| FREQUENCY RESPONSE(-3dB) | 35Hz-300Hz | 35Hz-300Hz and 50Hz-20kHz |
| DRIVERS | 1×18"(460mm)/4"voice coil LF | 1×18"(460mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak | 900W/4Ω+1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,133dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 965mm×635mm×595mm | 965mm×635mm×595mm |
| NET WEIGHT | 43 kg/pc | 45 kg/pc |
| GROSS WEIGHT | 48 kg/pc | 50 kg/pc |
