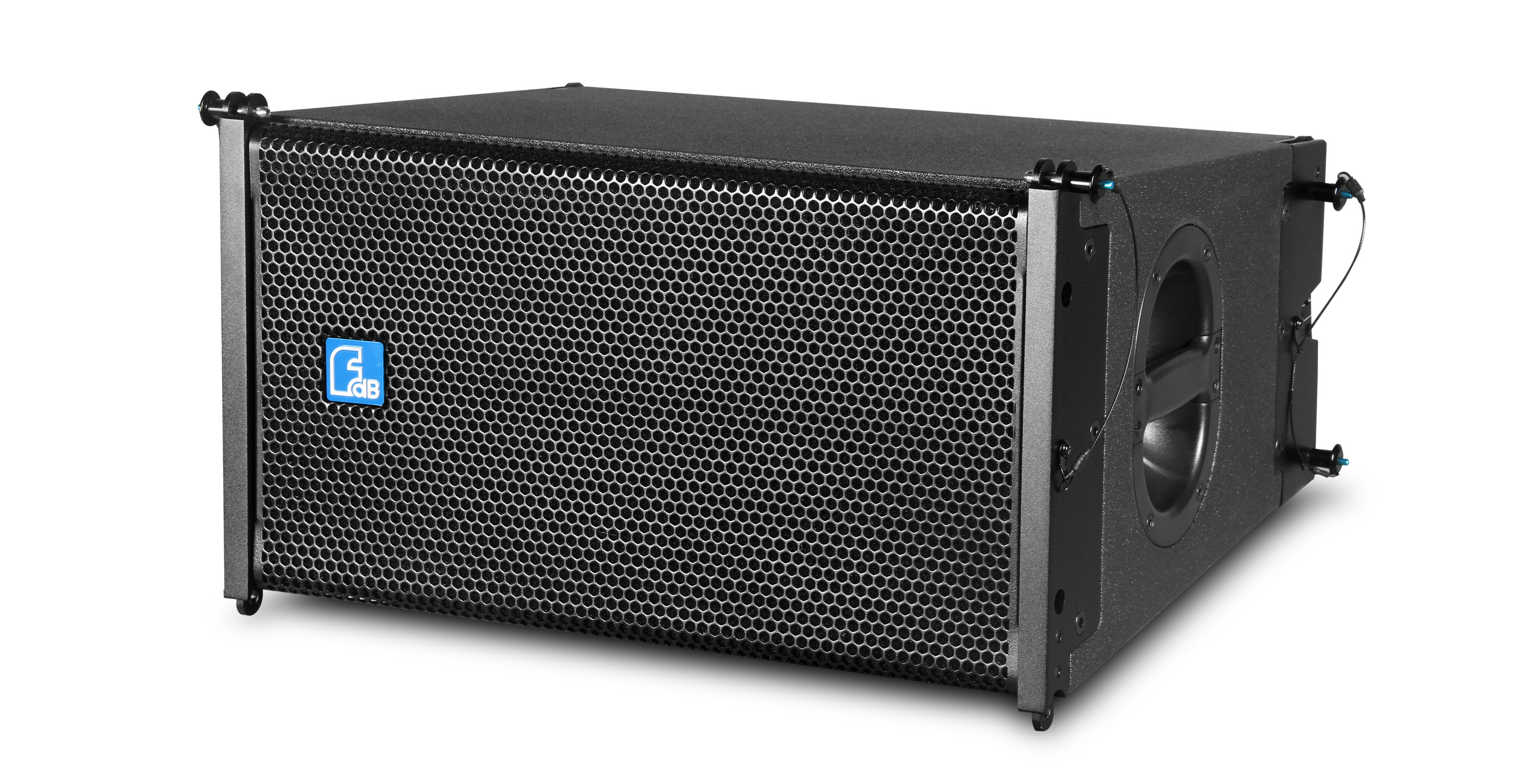

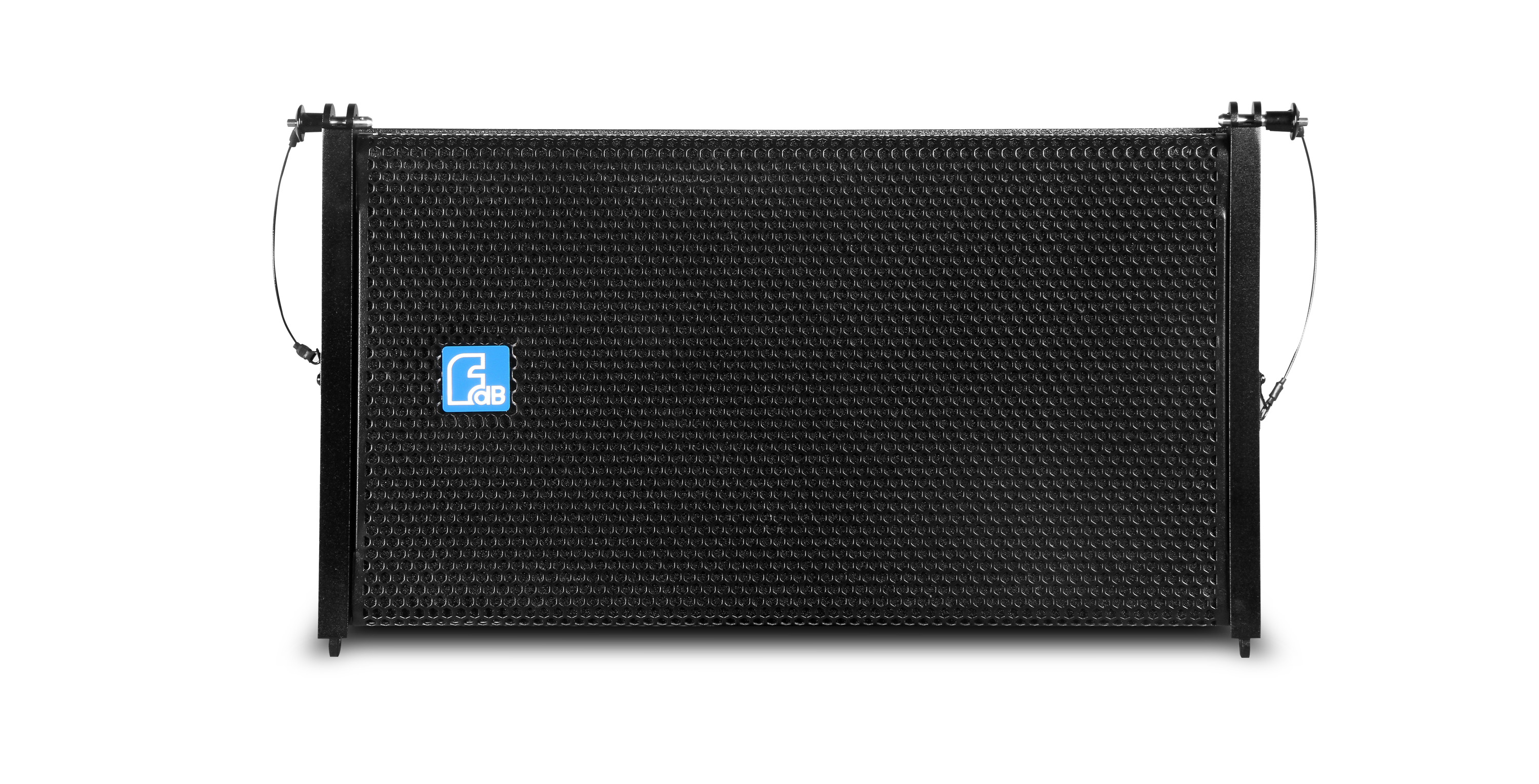

MLA110
1x10" 2-way line array system
DESCRIPTION

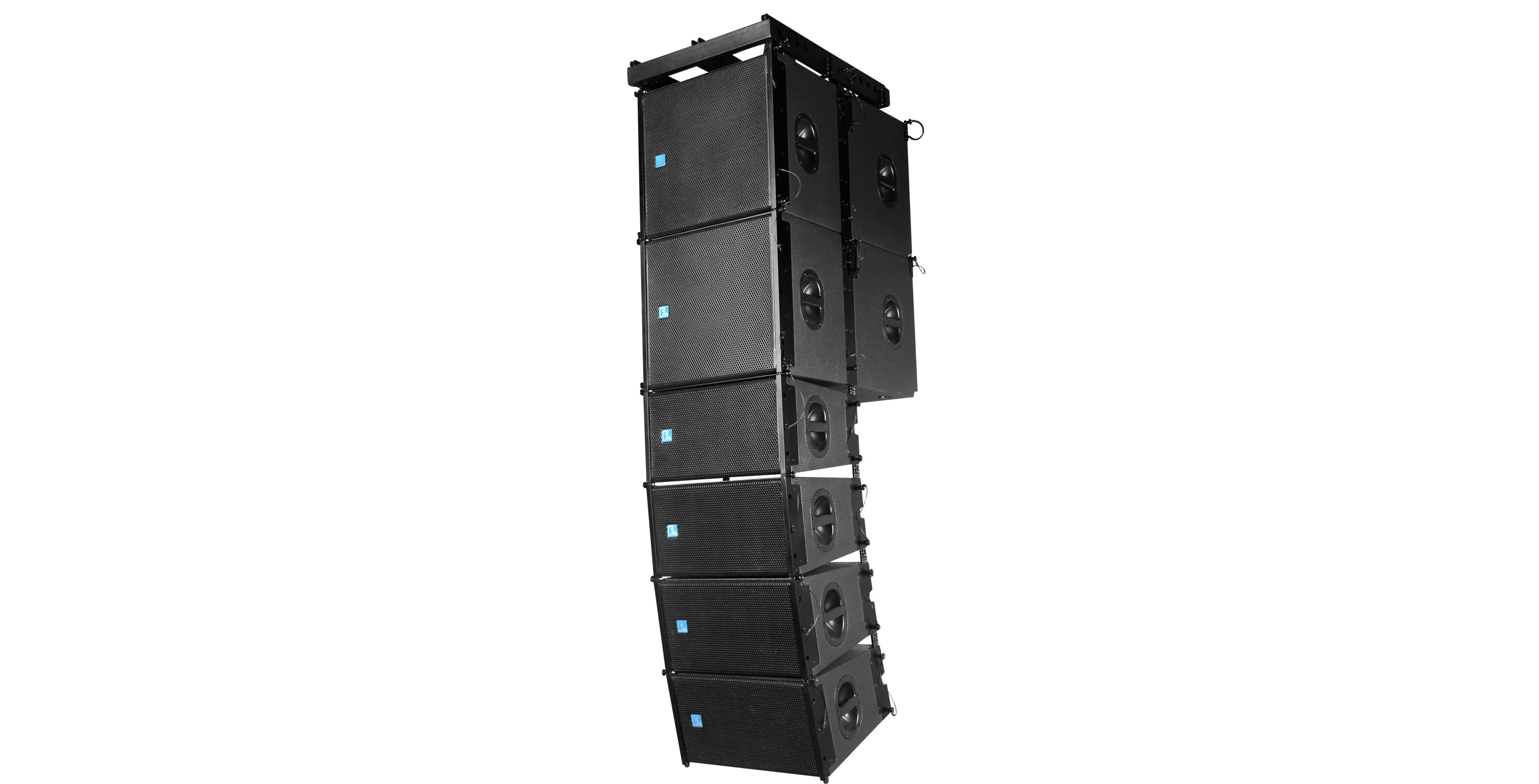

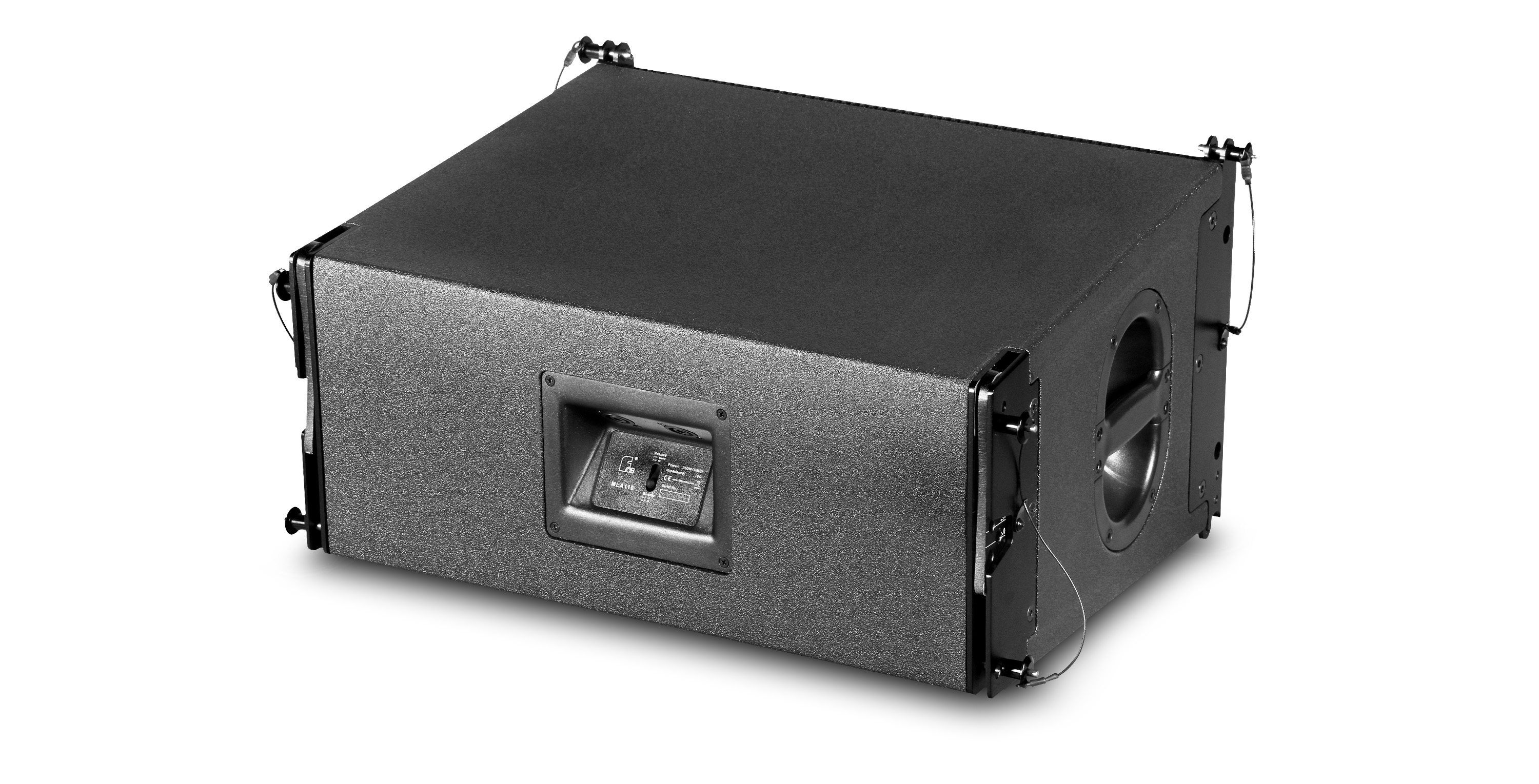

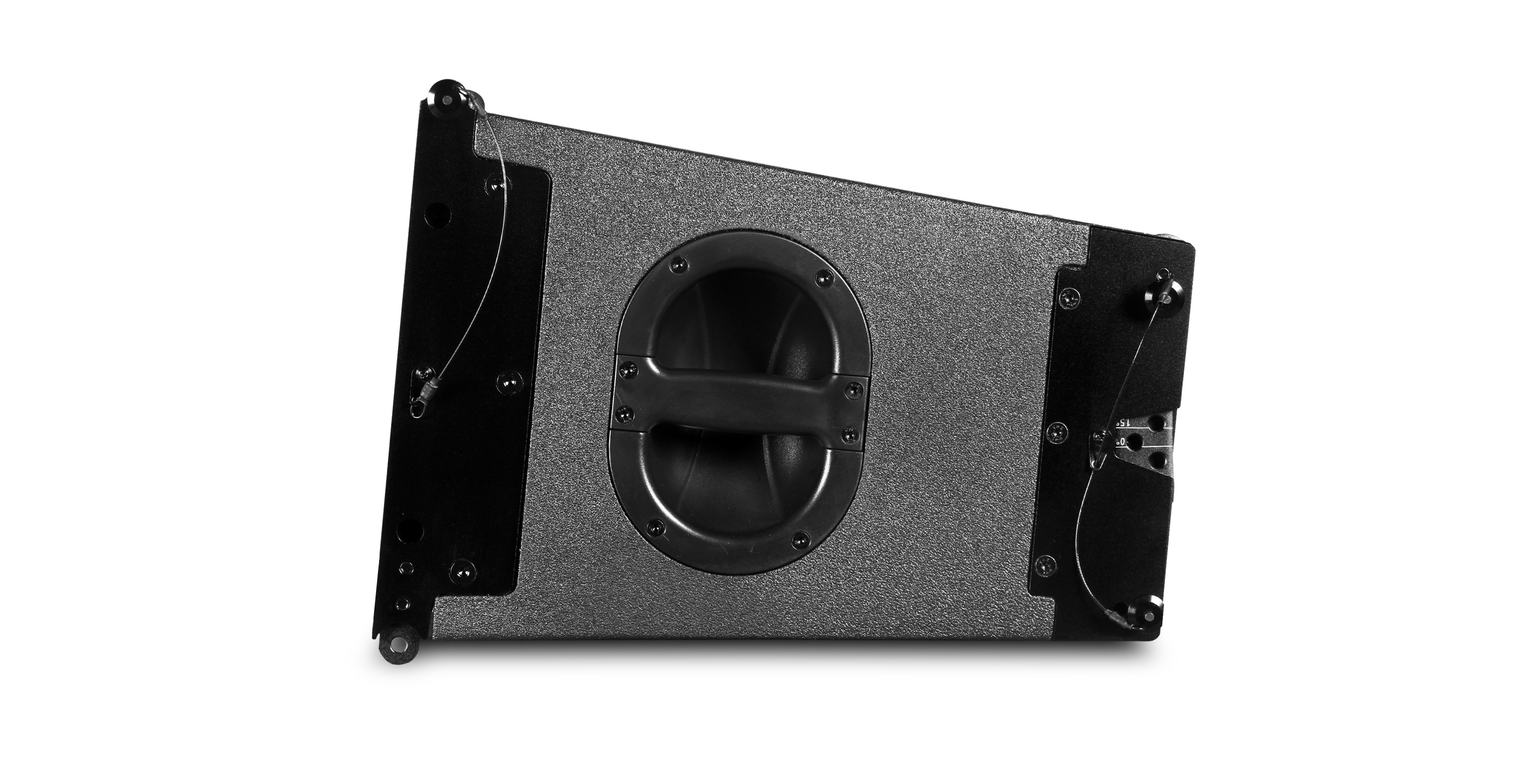

The MLA110 is a small and medium scale line array loudspeaker for long throw distance scale sound reinforcement, fitted with one 10" neodymium LF driver and one 1.4" neodymium HF driver coupled to a patent line array horn, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy.
FEATURES
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging and stacking
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging and stacking
●Good used for moving performance,small scale theater and band
SPECIFICATIONS
| MODEL | MLA110 |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
50Hz-20KHz |
| DRIVERS |
1×10"(250mm)/3"voice
coil LF 1×1.4"(36mm)/3"voice coil HF |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 98dB 1watt/1meter |
| MAXIMUM SPL | 122dB continuous,128dB peak |
| IMPEDANCE | 16 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage：100°Vertical coverage：Varies, depending on array length and configuration |
| CROSSOVER FREQUENCIES | 1.3kHz passive |

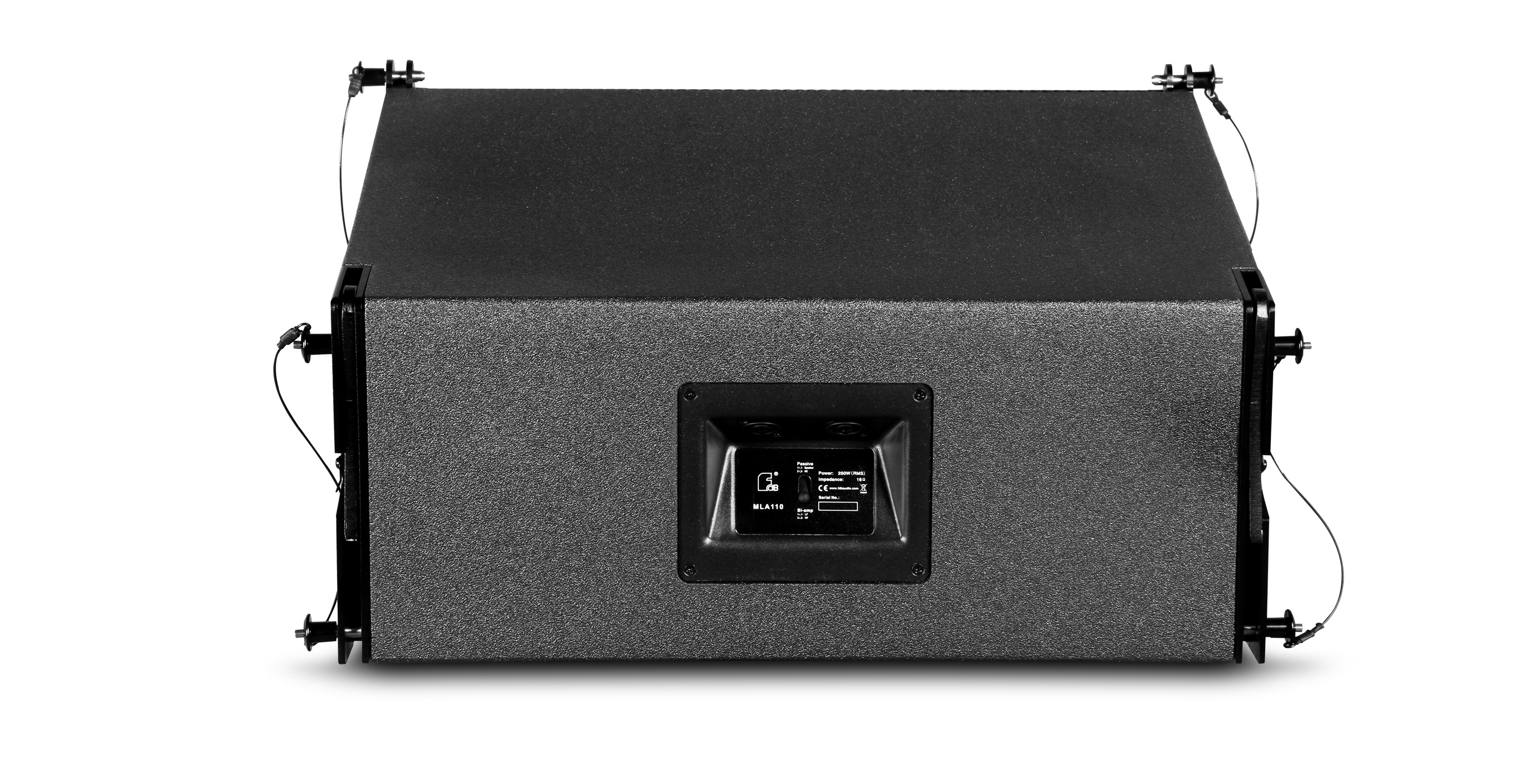

| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 525mm×410mm×640mm |
| NET WEIGHT | 20 kg/pc |
| GROSS WEIGHT | 23 kg/pc |

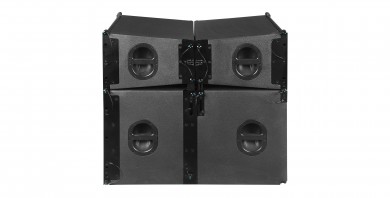

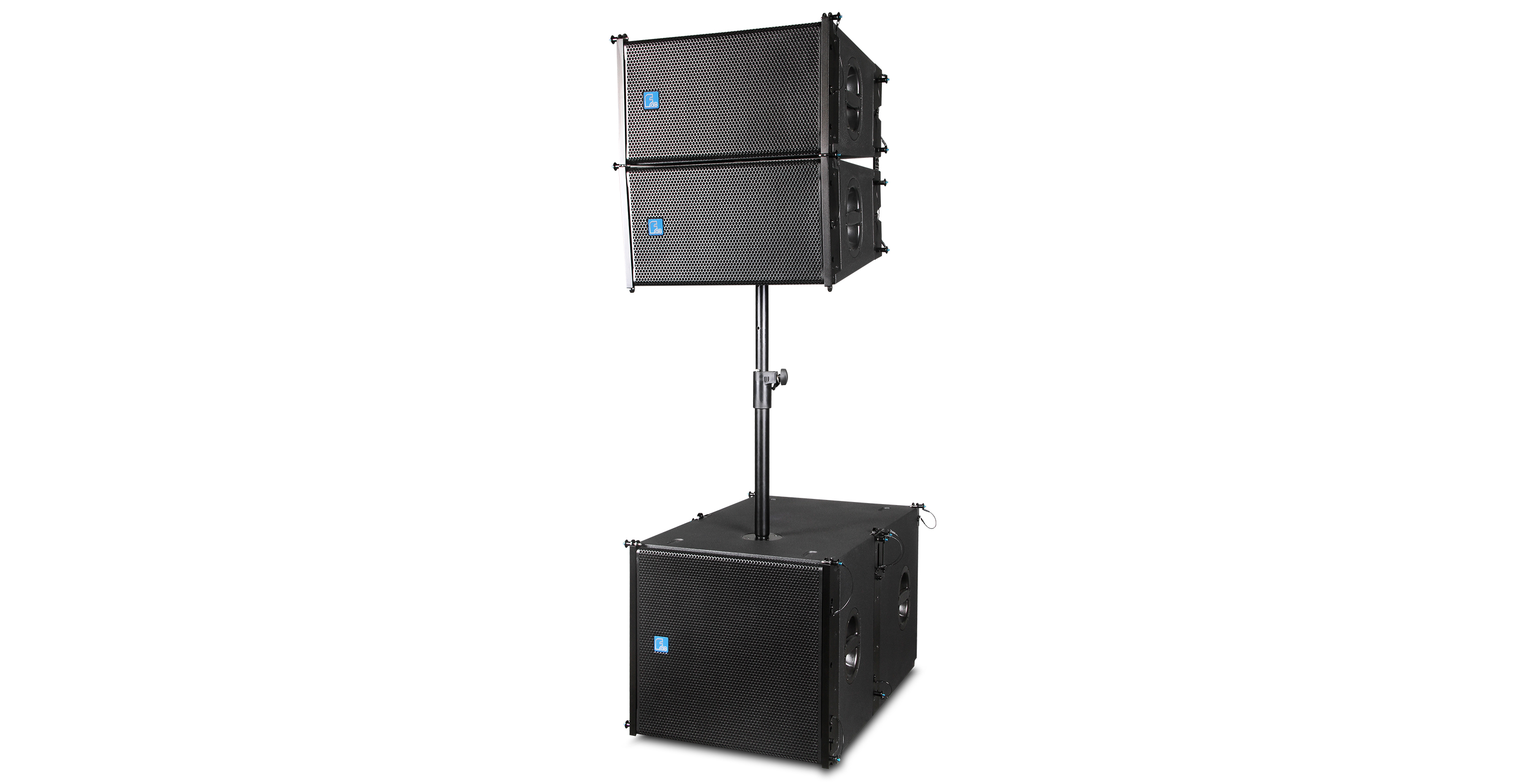

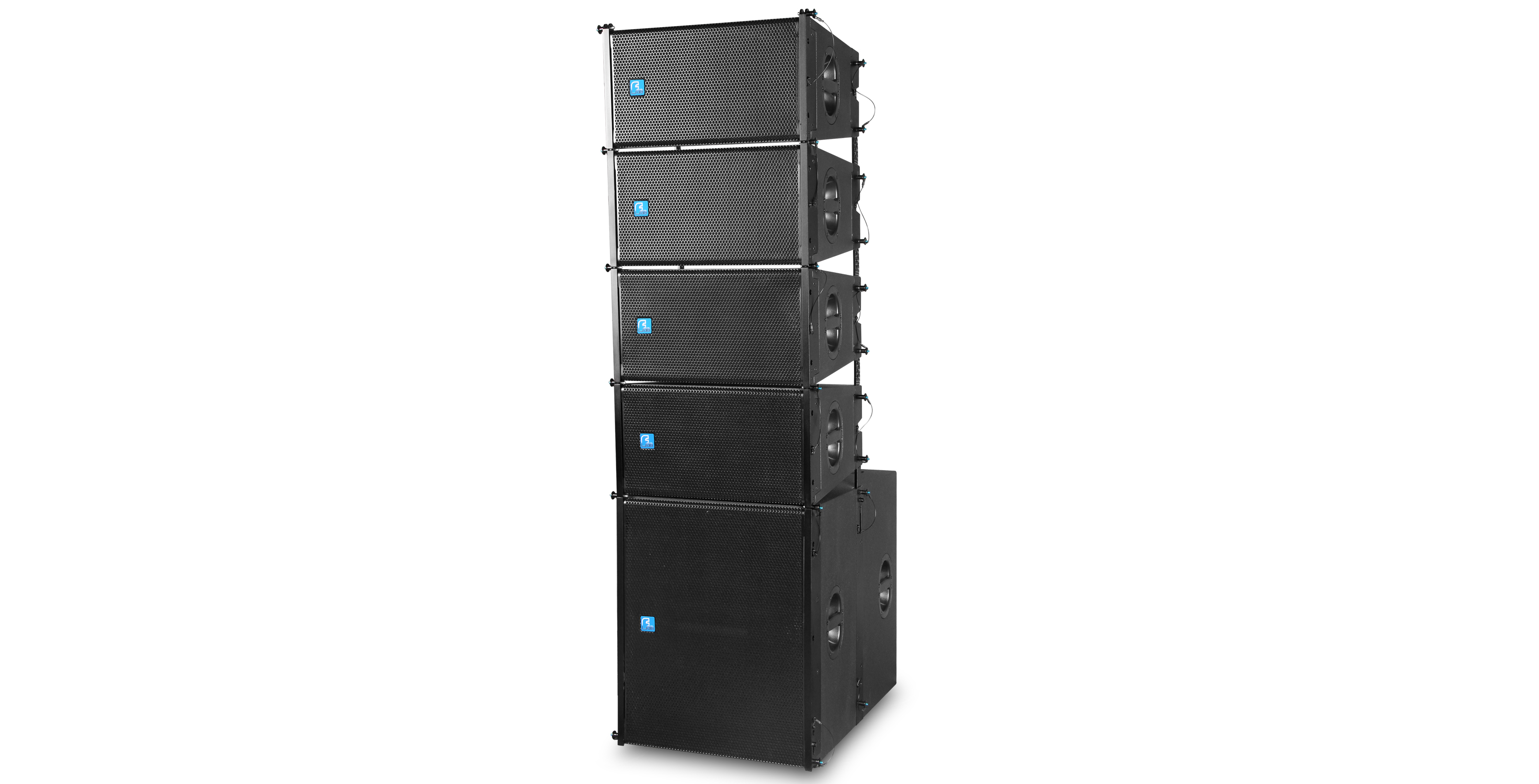

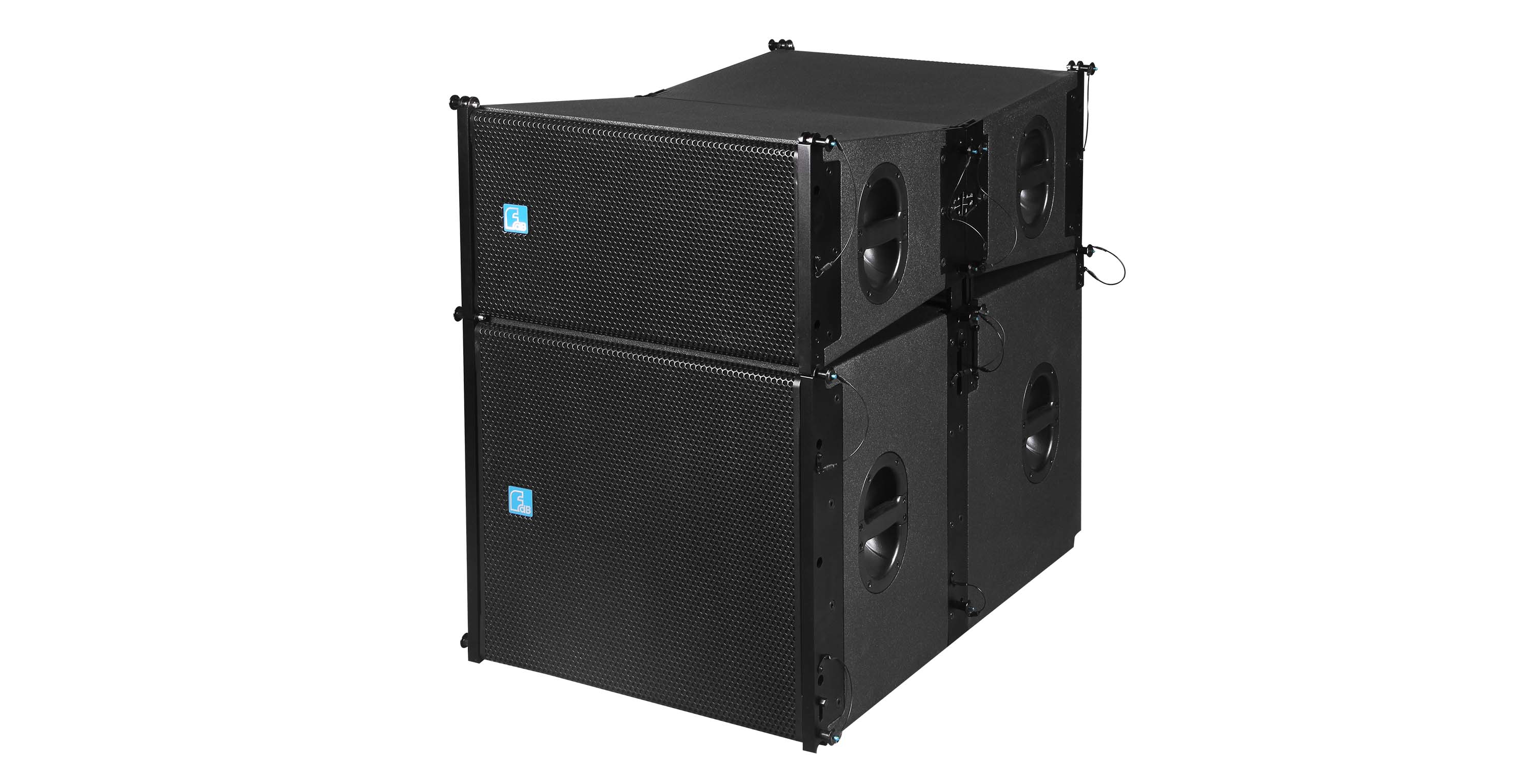

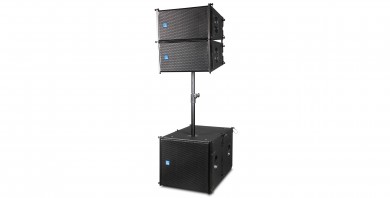

CONFIGURATION
