DESCRIPTION

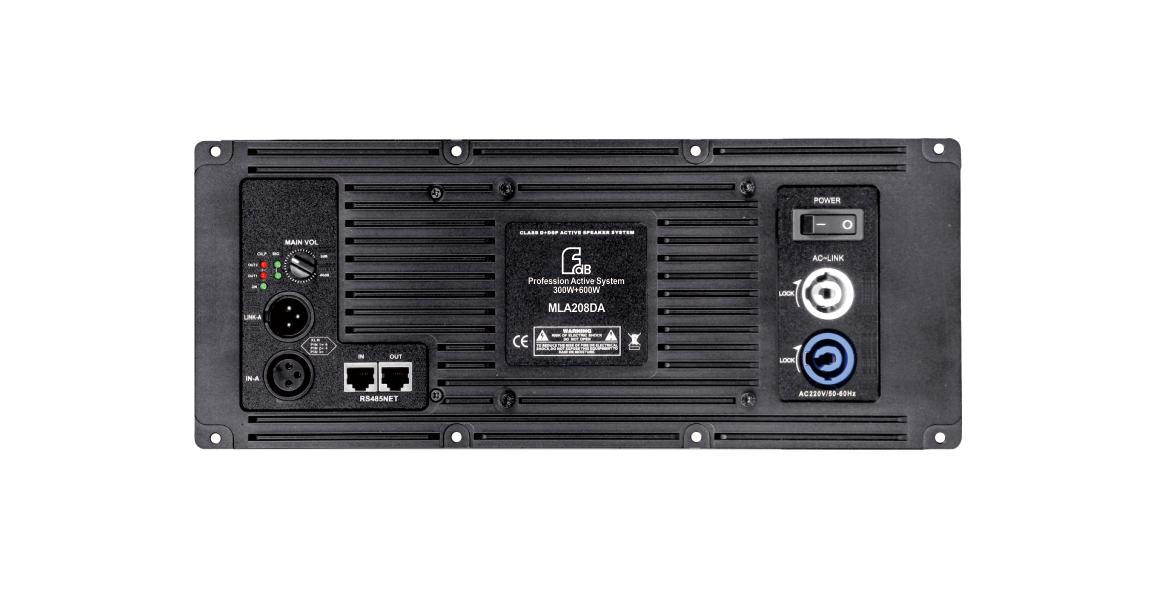

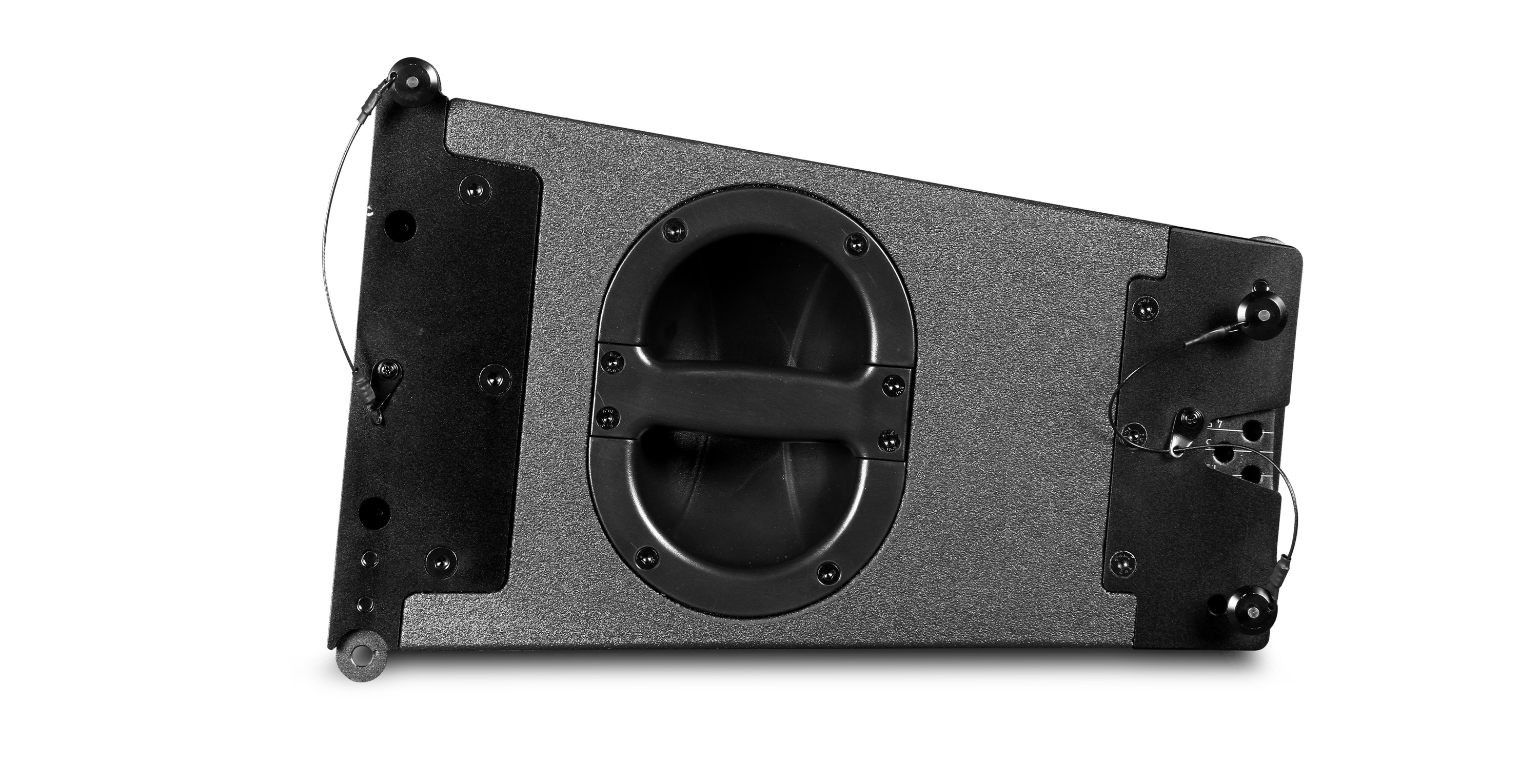

The MLA208 is a 2.5-way mini line array loudspeaker for small and medium scale sound reinforcement, fitted with two 8" neodymium LF drivers and one 1.4" neodymium HF driver coupled to a patent line array horn, made of high quality polyurea waterproof paint. All rigging parts are made of aluminium alloy. The MLA208DA is equipped with FA2.36 digital amplifier module based on MLA208 to be an active line array loudspeaker.
FEATURES
●High quality neodymium components
●Patent line array horn
●Passive or Bi-amp operation
●Convenient for hanging and stacking
●Good used for moving performance,small scale theater,stadium and odeums.
SPECIFICATIONS
|
MODE |
MLA208 |
MLA208DA |
|
LFREQUENCY RESPONSE(-3dB) |
65Hz-18KHz |
65Hz-18KHz |
|
LFREQUENCY RESPONSE(-10dB) |
60Hz-20KHz |
60Hz-20KHz |
|
DRIVERS |
2x8"(200mm)/2"voice coil LF 1x1.4"(36mm)/3"voice coil HF |
2x8"(200mm)/2"voice coil LF 1x1.4"(36mm)/3"voice coil HF |
|
RATED POWER |
300W RMS,1200W peak |
300W/8Ω+600W/8Ω |
|
SENSITIVITY |
98dB 1watt/1meter |
-- |
|
MAXIMUM SPL |
124dB continuous,130dB peak |
124dB continuous,130dB peak |
|
IMPEDANCE |
8 ohms nominal |
-- |
|
DISPERSION(-6dB) |
Horizontal coverage:100°, Vertical coverage:varies,depending on arry length and configuration |
Horizontal coverage:100°, Vertical coverage:varies,depending on arry length and configuration |
|
CROSSOVER FREQUENCIES |
700Hz,1.5kHz passive |
- |
|
INPUT CONNECTORS |
2×Speakon NL4 |
INPUT TYPE: Balanced Differential line |
|
PACKAGE SIZE |
505mmx362mmx730mm |
505mmx362mmx730mm |
|
NET WEIGHT |
20 kg/pc |
22 kg/pc |
|
GROSS WEIGHT |
24 kg/pc |
26 kg/pc |

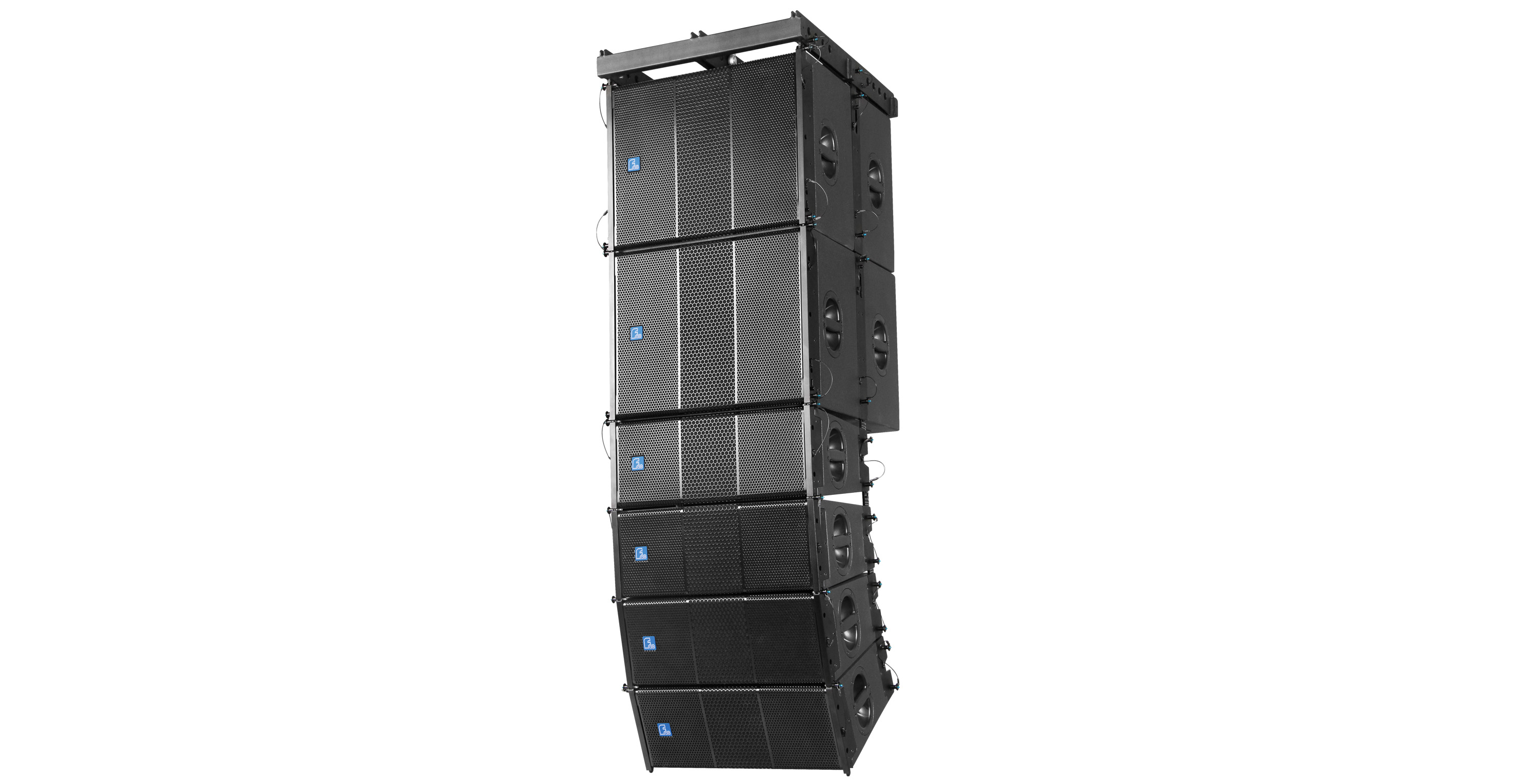

CONFIGURATION
