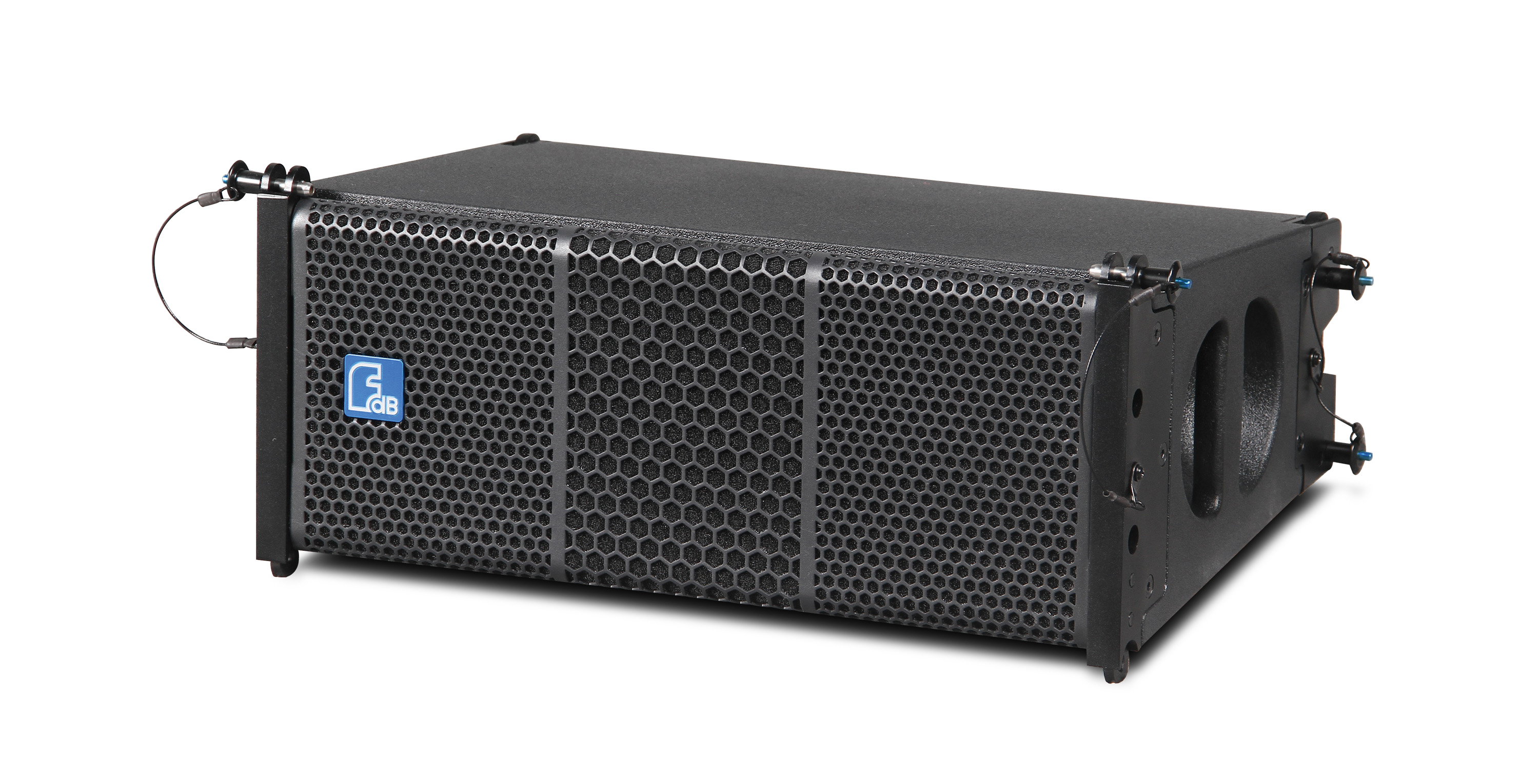

MLA206
2x6" 2-way line array system
DESCRIPTION
The MLA206 is a mini line array loudspeaker for small and medium scale sound reinforcement, fitted with two 6" LF neodymium drivers and one 1" neodymium HF driver coupled to a patent line array horn, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy.
FEATURES
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight,but with high SPL
●Convenient for hanging and stacking
●Good used for moving performance,small scale theater and band
SPECIFICATIONS
|
MODE |
MLA206 |
|
LFREQUENCY RESPONSE(-3dB) |
90Hz-18kHz |
|
LFREQUENCY RESPONSE(-10dB) |
85Hz-20kHz |
|
DRIVERS |
2×6"(150mm)/1.5"voice coil LF 1×1"(25mm)/1.7"voice coil HF |
|
RATED POWER |
160W RMS,640W peak |
|
SENSITIVITY |
96dB 1watt/1 metre |
|
MAXIMUM SPL |
118 dB continuous,124 dB peak |
|
IMPEDANCE |
16 ohms nominal |
|
DISPERSION(-6dB) |
Horizontal covrage:110° Vertical coverage: Varies, depending on array length andconfiguration |
|
CROSSOVER FREQUENCIES |
1.9kHz passive |
|
INPUT CONNECTORS |
2×Speakon NL4 |
|
PACKAGE SIZE |
412mm×270mm×565mm |
|
NET WEIGHT |
9 kg/pc |
|
GROSS WEIGHT |
11 kg/pc |
CONFIGURATION
DOWNLOAD
